Same model may have multiple batches, images only for reference.

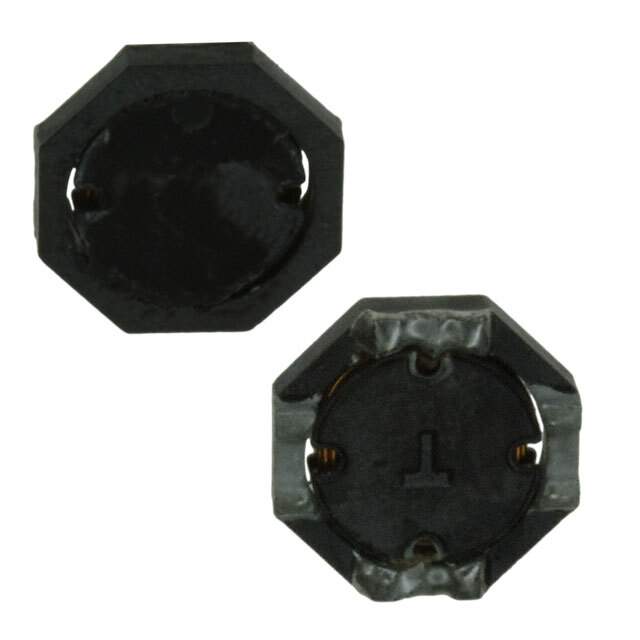

7440700056 Real Image
Same model may have multiple batches, images only for reference.

7440700056

Part No 7440700056
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 5.6UH 2.6A 56 MOHM SMD
Datasheet
7440700056 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 5.6 µH
Tolerance ±30%
Current Rating (Amps) 2.6 A
Current - Saturation (Isat) 2A
Shielding Shielded
DC Resistance (DCR) 56mOhm Max
Frequency - Self Resonant 60MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 550 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857273-7440700056
Ultra Librarian 3D Model Ultra Librarian 7440700056 CAD Model

Description

The 857273-7440700056 is a shielded drum core, wirewound inductor from the WE-TPC series by Wurth Electronics Inc.

  • Type: Fixed Inductor
  • Size: 0.315" L x 0.315" W (8.00mm x 8.00mm)
  • Inductance: 5.6 μH
  • Height: 0.079" (2.00mm)
  • Tolerance: ±30%
  • Current Rating: 2.6 A
  • Operating Temperature: -40°C to 125°C
