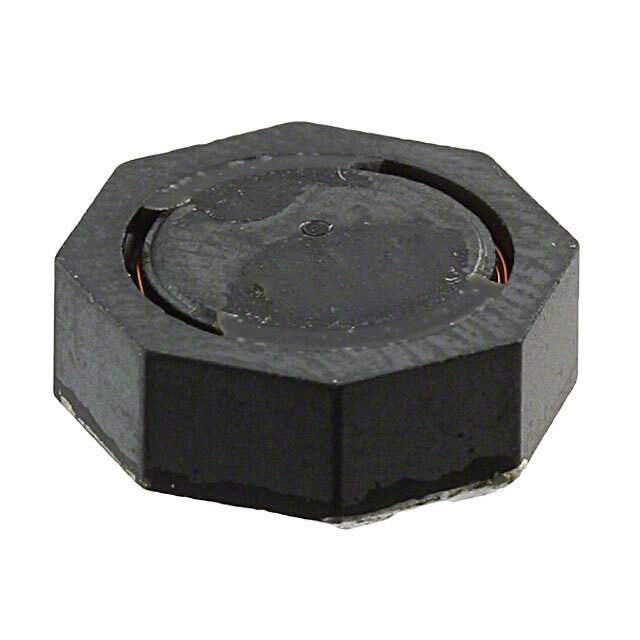

Same model may have multiple batches, images only for reference.

7440660015

Name: 7440660015
Brand: Wurth Electronics Inc
SKU: 1381100
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7440660015
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 1.5UH 7.2A 7.5MOHM SMD / 1.5 µH Shielded Drum Core, Wirewound Inductor 7.2 A 7.5mOhm Max Nonstandard
Datasheet	7440660015 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	1.5 µH
Tolerance	±30%
Current Rating (Amps)	7.2 A
Current - Saturation (Isat)	10A
Shielding	Shielded
DC Resistance (DCR)	7.5mOhm Max
Q @ Freq	-
Frequency - Self Resonant	65MHz
Ratings	-
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.161" (4.10mm)
Base Product Number	744066
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	800 pcs
Win Source Part Number	1381100-7440660015
Ultra Librarian 3D Model	Ultra Librarian 7440660015 CAD Model

Alternative Products

Description

The WE-TPC series inductor is a fixed inductor with a drum core, wirewound design manufactured by Wurth Electronics Inc.

Design: Drum Core, Wirewound
Shielding: Shielded
Package: Nonstandard
Inductance: 1.5 µH
Tolerance: ±30%
DC Resistance (DCR): 7.5mOhm maximum
Current Rating: 7.2 A
Saturation Current (Isat): 10A
Operating Temperature: -40°C to 125°C
Mounting Type: Surface Mountable
Size: 0.394" L x 0.394" W (10.00mm x 10.00mm)
