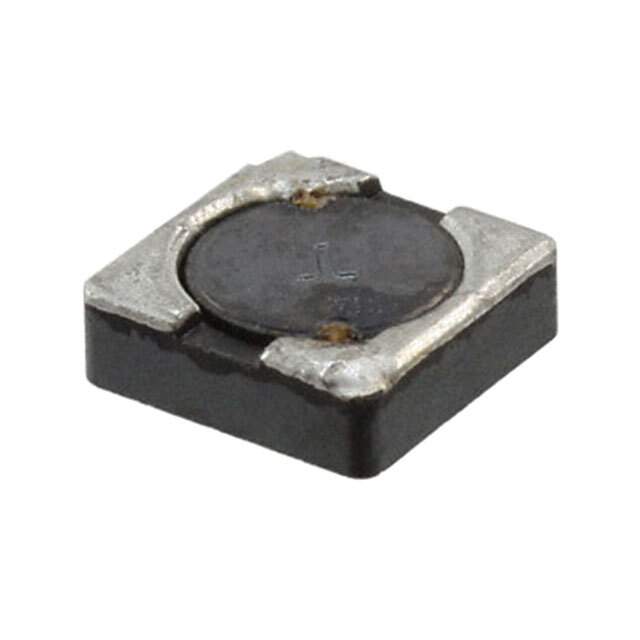

744062001 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 1μH
Tolerance -40%, +20%
Current Rating (Amps) 4.8A
Current - Saturation 4.6A
Shielding Shielded
DC Resistance (DCR) 14mOhm Max
Frequency - Self Resonant 110MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package 2727 (6868 Metric)
Parts Dimension 0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Maximum) 0.098" (2.50mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129888-744062001
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 744062001 CAD Model

Description

The Wurth Electronics Inc. wirewound inductor is designed for use in electronic circuits.

  • Packaging: reel
  • It is shielded.
  • Core Material: ferrite
  • Tolerance: -40% to +20%
  • DC Resistance: 14mOhm Max
  • Current Rating: 4.8A
  • The supply and demand status of the inductor is sufficient.
