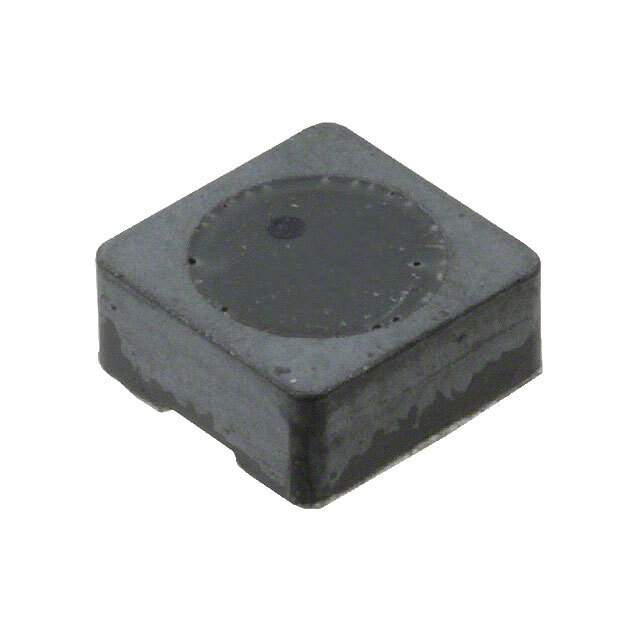

Same model may have multiple batches, images only for reference.

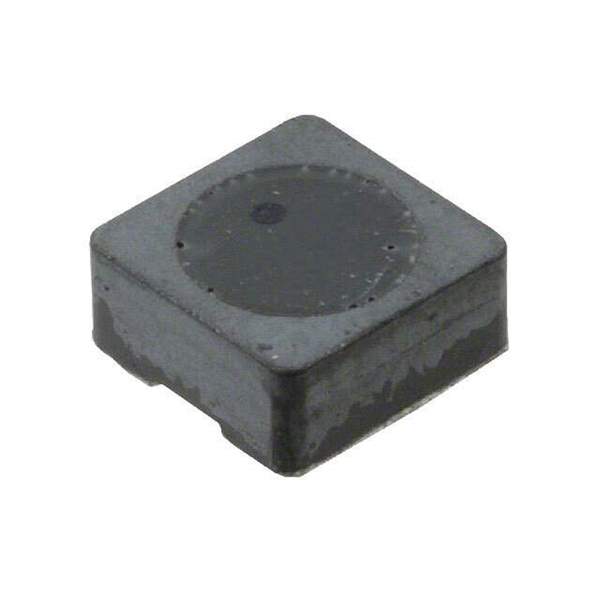

744053150 Real Image
Same model may have multiple batches, images only for reference.

744053150

Part No 744053150
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 15UH 1.38A 100MOHM SMD
Datasheet
744053150 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±30%
Current Rating (Amps) 1.38 A
Current - Saturation (Isat) 1.15A
Shielding Shielded
DC Resistance (DCR) 100mOhm Max
Frequency - Self Resonant 20MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 2323 (5858 Metric)
Size / Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 400 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857252-744053150
Ultra Librarian 3D Model Ultra Librarian 744053150 CAD Model

Description

The WE-TPC series from Wurth Electronics Inc is a shielded fixed inductor with a drum core and wirewound construction.

  • Size: 0.228" L x 0.228" W (5.80mm x 5.80mm)
  • Height: 0.118" (3.00mm)
  • Inductance: 15 µH
  • Tolerance: ±30%
  • Maximum DC Resistance (DCR): 100mOhm
  • Current Rating: 1.38A
  • Mounting Type: Surface Mount
  • Package: 2323 (5858 Metric)
  • Operating Temperature: -40°C to 125°C
  • Product Status: Active
