Same model may have multiple batches, images only for reference.

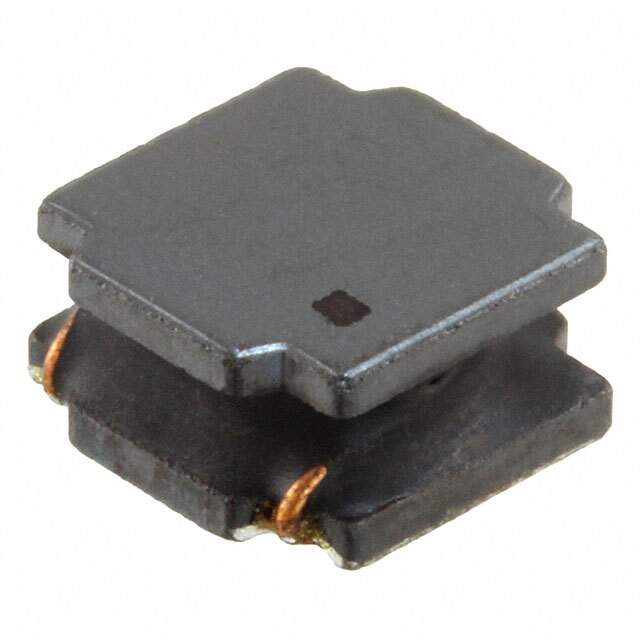

74404084047 Real Image
Same model may have multiple batches, images only for reference.

74404084047

Part No 74404084047
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 4.7UH 4.1A 19 MOHM SMD / 4.7 µH Semi-Shielded Drum Core, Wirewound Inductor 4.1 A 19mOhm Nonstandard
Datasheet
74404084047 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±30%
Current Rating (Amps) 4.1 A
Current - Saturation (Isat) 6.5A
Shielding Semi-Shielded
DC Resistance (DCR) 19mOhm
Frequency - Self Resonant 30MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Supplier Device Package 8040
Size / Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) 0.165" (4.20mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-5562-1,732-5562-2,732-5562-6
Standard Package 1,000
Win Source Part Number 1330615-74404084047
Ultra Librarian 3D Model Ultra Librarian 74404084047 CAD Model

Description

The Würth Elektronik 1330615-74404084047 is a high-quality fixed inductor with a semi-shielded design.

  • Design: Semi-Shielded
  • Core Material: Drum Core
  • Type: Wirewound
  • Size: 0.315" L x 0.315" W (8.00mm x 8.00mm)
  • Inductance: 4.7 µH
  • Tolerance: ±30%
  • DC Resistance (DCR): 19mOhm
  • Rating: AEC-Q200
  • Temperature Range: -40°C ~ 125°C
