Same model may have multiple batches, images only for reference.

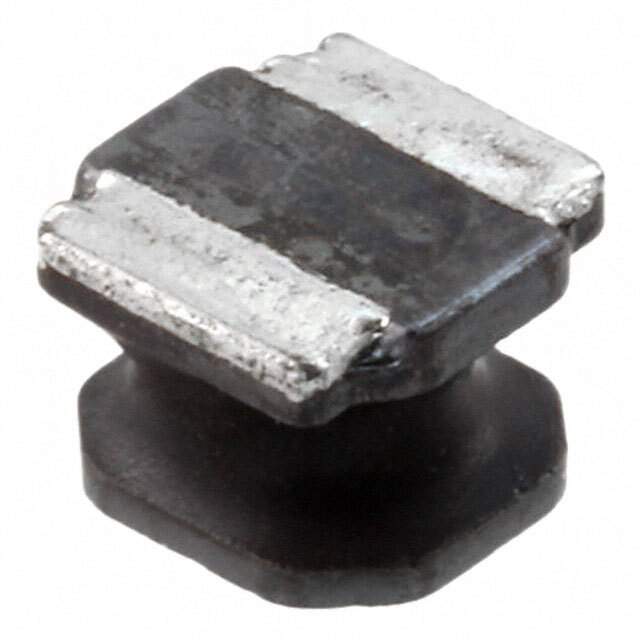

74404054470 Real Image
Same model may have multiple batches, images only for reference.

74404054470

Part No 74404054470
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 47UH 1A 272 MOHM SMD
Datasheet
74404054470 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-LQS
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 1.2A
Shielding Semi-Shielded
DC Resistance (DCR) 272mOhm
Frequency - Self Resonant 10MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 5040
Size / Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857225-74404054470
Ultra Librarian 3D Model Ultra Librarian 74404054470 CAD Model

Description

The WE-LQS series from Wurth Electronics Inc is a drum core, wirewound inductor with a semi-shielded design.

  • Size: 0.197" L x 0.197" W (5.00mm x 5.00mm)
  • Inductance: 47 µH
  • Material: Ferrite
  • DC Resistance (DCR): 272mOhm
  • Current Rating: 1 A
  • Temperature Range: -40°C to 125°C
  • Mounting: Surface mount
  • Package: Nonstandard
  • Rating: AEC-Q200
  • Frequency Self-Resonant: 10MHz
