Same model may have multiple batches, images only for reference.

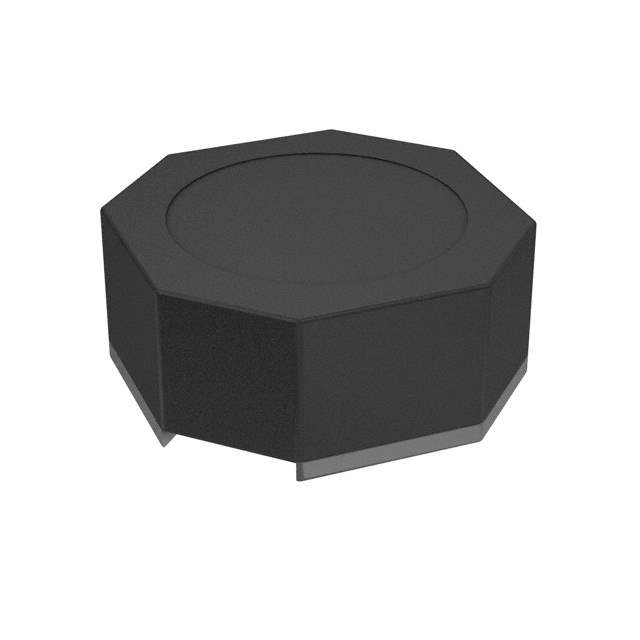

74402800033 Real Image
Same model may have multiple batches, images only for reference.

74402800033

Part No 74402800033
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 330NH 2.8A 35 MOHM SMD / 330 nH Shielded Drum Core, Wirewound Inductor 2.8 A 35mOhm Max Nonstandard
Datasheet
74402800033 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 330 nH
Tolerance ±35%
Current Rating (Amps) 2.8 A
Current - Saturation (Isat) 2.4A
Shielding Shielded
DC Resistance (DCR) 35mOhm Max
Frequency - Self Resonant 550MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 2828
Size / Dimension 0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max) 0.047" (1.20mm)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857200-74402800033
Ultra Librarian 3D Model Ultra Librarian 74402800033 CAD Model

Description

The 74402800033 is a fixed inductor from Wurth Electronics Inc.

  • Series: WE-TPC
  • Design: Drum Core, Wirewound
  • Shielded: Yes
  • Package: Tape & Reel
  • Size: 0.110" L x 0.110" W (2.80mm x 2.80mm)
  • Inductance: 330 nH
  • Height When Seated: 0.047" (1.20mm)
  • Tolerance: ±35%
  • DC Resistance (DCR): 35mOhm max
  • Temperature Range: -40°C to 125°C
  • Current Rating: 2.8A
