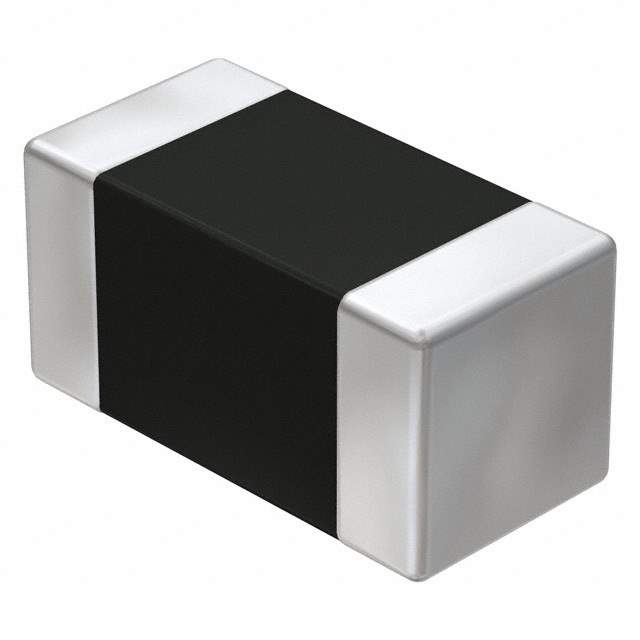

742792695 Real Image
Same model may have multiple batches, images only for reference.

742792695

Part No 742792695
Manufacturer Wurth Electronics Inc
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 2.5K OHM 0603 1LN
Datasheet
742792695 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Wurth Electronics Inc
Series WE-CBF
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 2.5 kOhms @ 100 MHz
Current Rating (Max) 50mA
DC Resistance (DCR) (Max) 1Ohm
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Height (Max) 0.039" (1.00mm)
Size / Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857181-742792695
Ultra Librarian 3D Model Ultra Librarian 742792695 CAD Model

Description

The WE-CBF series is a ferrite bead filter designed for signal line applications.

  • Size: 0.063" x 0.032" (1.60mm x 0.80mm)
  • Height: 0.039" (1.00mm)
  • Impedance @ 100 MHz: 2.5 kOhms
  • DC Resistance: 1Ohm
  • Package: Surface Mount
  • Applications: Signal Line
  • Operating Temperature: -55°C to 125°C
  • Product Status: Active
  • Manufacturer: Wurth Electronics Inc
  • Standard Package: 4,000 pcs
