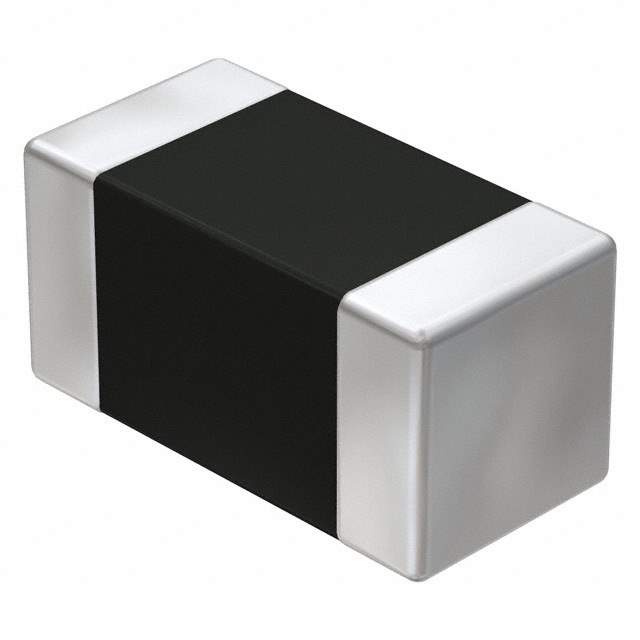

Same model may have multiple batches, images only for reference.

742792609

Name: 742792609
Brand: Wurth Electronics Inc
SKU: 857177
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	742792609
Manufacturer	Wurth Electronics Inc
Catalog	Ferrite Beads and Chips
Description	FERRITE BEAD 30 OHM 0603 1LN
Datasheet	742792609 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - Ferrite Beads and Chips
Mfr	Wurth Electronics Inc
Series	WE-CBF
Package	Tape & Reel
Product Status	Active
Filter Type	Signal Line
Number of Lines	1
Impedance @ Frequency	30 Ohms @ 100 MHz
Current Rating (Max)	3A
DC Resistance (DCR) (Max)	40mOhm
Temperature Range - Operating	-55°C ~ 125°C
Package / Case	0603 (1608 Metric)
Mounting Type	Surface Mount
Height (Max)	0.039" (1.00mm)
Size / Dimension	0.063" L x 0.032" W (1.60mm x 0.80mm)
Standard Package	4,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	857177-742792609
Ultra Librarian 3D Model	Ultra Librarian 742792609 CAD Model

Description

The WE-CBF series is a range of ferrite beads and chips designed for signal line filtering applications.

Size: 0.063" L x 0.032" W (1.60mm x 0.80mm)
Maximum Current Rating: 3A
Impedance @ 100 MHz: 30 Ohms
DC Resistance (DCR): 40mOhm Max
Mounting Type: Surface Mountable
Package: Tape & Reel
Standard Package Quantity: 4,000 pcs
Operating Temperature: -55°C to 125°C
Manufacturer: Wurth Electronics Inc
Product Status: Active
Compliance: REACH
