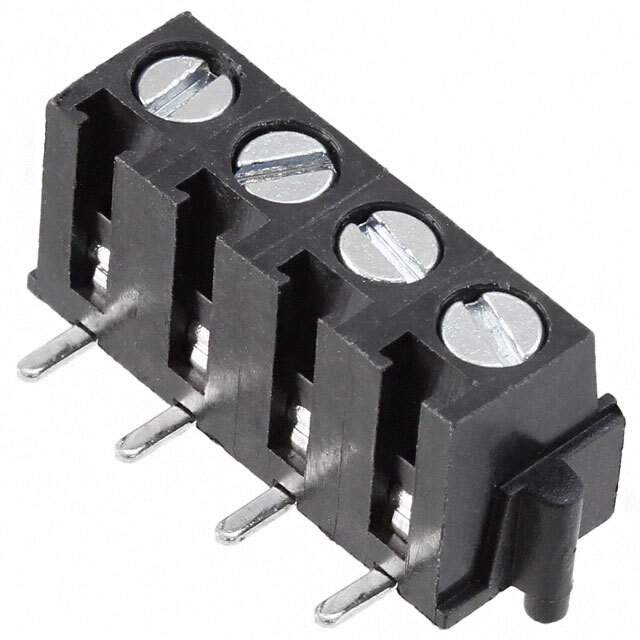

691709710304 Real Image1 691709710304 Real Image2
Same model may have multiple batches, images only for reference.
691709710304 Real Image1 691709710304 Real Image2
691709710304 Real Image1 691709710304 Real Image2
Same model may have multiple batches, images only for reference.

691709710304

Part No 691709710304
Manufacturer Wurth Electronics Inc
Catalog Terminal Blocks
Description TERM BLK 4POS SIDE ENTRY 5MM SMD / 4 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Surface Mount
Datasheet
691709710304 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Mfr Wurth Electronics Inc
Series WR-TBL Series 7097
Package Tape & Reel
Number of Levels 1
Positions Per Level 4
Pitch 0.197" (5.00mm)
Mating Orientation Horizontal with Board
Current 6 A
Voltage 300 V
Wire Gauge 14-30 AWG
Mounting Type Surface Mount
Wire Termination Screw - Leaf Spring, Wire Guard
Features Board Guide
Color Black
Temperature Range - Operating -40°C ~ 115°C
Housing Material Polyamide (PA46), Nylon 4/6
Contact Material - Plating Tin Plated
Clamp Material - Plating Steel, Stainless
Screw Material - Plating Steel - Zinc Plated
Torque - Screw 0.4 Nm (3.5 Lb-In)
Screw Thread M3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 200 pcs
Win Source Part Number 1381023-691709710304
Ultra Librarian 3D Model Ultra Librarian 691709710304 CAD Model

Description

The WR-TBL Series 7097 is a wire-to-board terminal block connector.

  • Series: WR-TBL Series 7097
  • Positions per Level: 4
  • Pitch: 0.197" (5.00mm)
  • Color: Black
  • Features: Board Guide
  • Mounting: Surface Mount
  • Voltage Rating: 300 V
  • Wire Gauge: 14-30 AWG
  • Contact Material: Tin Plated Brass
  • Clamp Material: Steel and Stainless Steel
  • Screw Material: Steel with Zinc Plating
  • Torque Rating: 0.4 Nm (3.5 Lb-In)
  • Screw Thread: M3
  • Operating Temperature: -40°C to 115°C
  • Package: Tape and Reel
  • Pieces per Package: 200
  • Manufacturer: Wurth Electronics Inc.
