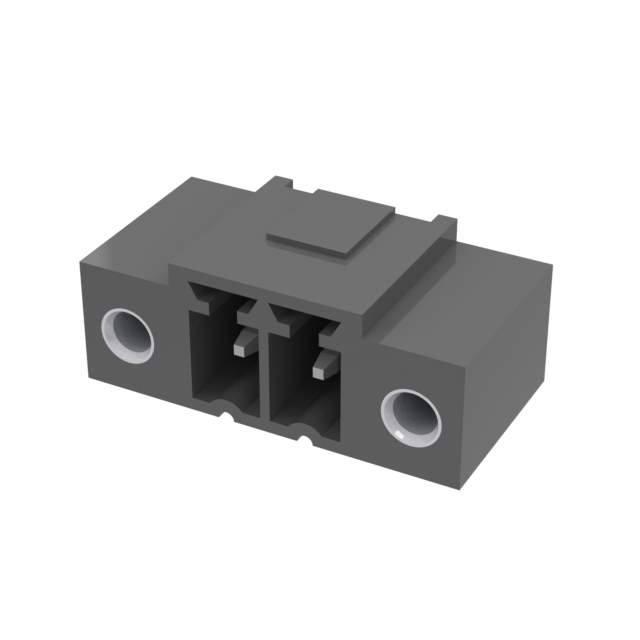

Same model may have multiple batches, images only for reference.

691701320002B

Name: 691701320002B
Brand: Wurth Electronics Inc
SKU: 1381014
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	691701320002B
Manufacturer	Wurth Electronics Inc
Catalog	Headers, Plugs and Sockets
Description	3.81 MM TERMINAL BLOCK HEADER, V / 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole
Datasheet	691701320002B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Mfr	Wurth Electronics Inc
Series	WR-TBL Series 7013B
Package	Tape & Reel
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	2
Positions Per Level	2
Number of Levels	1
Pitch	0.150" (3.81mm)
Header Orientation	Vertical
Plug Wire Entry	-
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	-
Current - UL	10 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	-
Wire Gauge or Range - mm2	-
Color	Black
Temperature Range - Operating	-40°C ~ 105°C
Contact Mating Finish	Tin
Features	Mating Flange
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	-
Torque - Screw	-
Wire Strip Length	-
Contact Material	Brass
Housing Material	Liquid Crystal Polymer (LCP)
Contact Tail Length	0.102" (2.60mm)
Insulation Height	0.362" (9.20mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	250 pcs
Win Source Part Number	1381014-691701320002B
Ultra Librarian 3D Model	Ultra Librarian 691701320002B CAD Model

Description

The WR-TBL Series 7013B is a header connector with male pins, shrouded on all four sides.

Positions per Level: 2
Pitch: 0.150" (3.81mm)
Header Orientation: Vertical
Termination Style: Solder
Current Rating (UL): 10 A
Voltage Rating (UL): 300 V
Contact Material: Brass
Mating Finish: Tin
Housing Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Features: Mating Flange
Mounting Type: Through-Hole
Insulation Height: 0.362" (9.20mm)
Operating Temperature: -40°C to 105°C
Contact Tail Length: 0.102" (2.60mm)
Package: Tape and Reel
Standard Package Quantity: 250
Manufacturer: Wurth Electronics Inc
