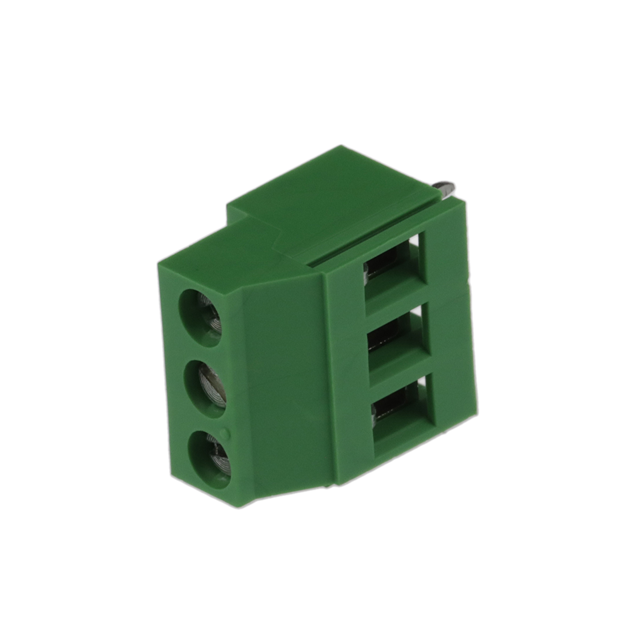

691253510003 Real Image1 691253510003 Real Image2
Same model may have multiple batches, images only for reference.
691253510003 Real Image1 691253510003 Real Image2
691253510003 Real Image1 691253510003 Real Image2
Same model may have multiple batches, images only for reference.

691253510003

Part No 691253510003
Manufacturer Wurth Electronics Inc
Catalog Terminal Blocks
Description 5.08 MM TERMINAL BLOCK, HORIZONT / 3 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
Datasheet
691253510003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Mfr Wurth Electronics Inc
Series WR-TBL Series 2535
Package Bulk
Number of Levels 1
Positions Per Level 3
Pitch 0.200" (5.08mm)
Mating Orientation Horizontal with Board
Current 16 A
Voltage 300 V
Wire Gauge 12-30 AWG
Mounting Type Through Hole
Wire Termination Screw - Rising Cage Clamp
Features Interlocking (Side)
Color Green
Temperature Range - Operating -30°C ~ 120°C
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Copper Alloy - Nickel Plated
Clamp Material - Plating Copper Alloy
Screw Material - Plating Steel - Zinc Plated
Torque - Screw 0.56 Nm (5.0 Lb-In)
Screw Thread M3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.90.4000
Standard Package 200 pcs
Win Source Part Number 1381006-691253510003
Ultra Librarian 3D Model Ultra Librarian 691253510003 CAD Model

Description

The WR-TBL Series 2535 from Wurth Electronics Inc is a wire to board terminal block with 3 positions and 1 level.

  • Positions: 3
  • Levels: 1
  • Series: WR-TBL Series 2535
  • Pitch: 0.200" (5.08mm)
  • Color: Green
  • Features: Interlocking on the side
  • Mounting Type: Through Hole
  • Wire Termination: Screw Rising Cage Clamp
  • Housing Material: Polyamide (PA66), Nylon 6/6
  • Contact Material: Copper Alloy
  • Contact Plating: Nickel
  • Voltage Rating: 300V
  • Current Rating: 16A
  • Operating Temperature: -30°C to 120°C
  • Package: Bulk
  • Standard Package Quantity: 200 pcs
