Same model may have multiple batches, images only for reference.

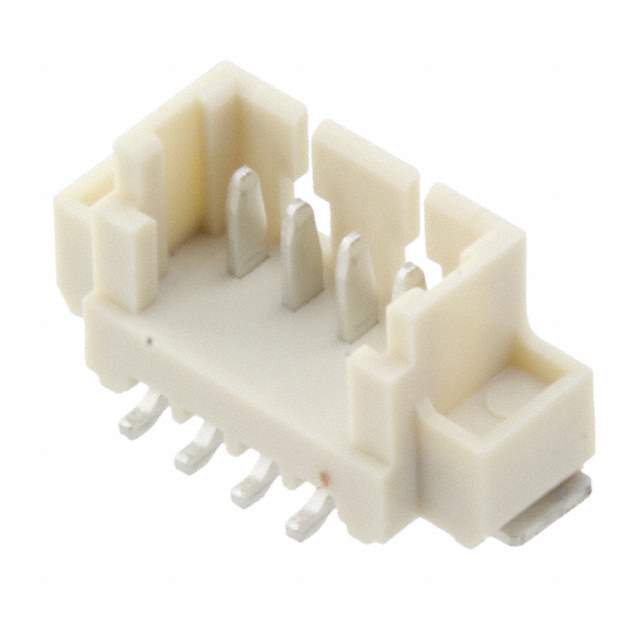

653104124022 Real Image
Same model may have multiple batches, images only for reference.

653104124022

Part No 653104124022
Manufacturer Wurth Electronics Inc
Catalog Rectangular Connectors
Description CONN HEADER SMD 4POS 1.25MM / Connector Header Surface Mount 4 position 0.049" (1.25mm)
Datasheet
653104124022 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Wurth Electronics Inc
Series WR-WTB
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.085" (2.15mm)
Insulation Height 0.187" (4.75mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA46), Nylon 4/6
Features Solder Retention
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 125V
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848554-653104124022
Ultra Librarian 3D Model Ultra Librarian 653104124022 CAD Model

Description

The WR-WTB series is a 4-position male pin header connector with solder retention feature. It is designed for surface mount installation and is packaged in tape & reel.

  • Positions: 4
  • Pin Gender: Male
  • Feature: Solder Retention
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Contact Material: Copper Alloy
  • Voltage Rating: 125V
  • Pitch: 0.049" (1.25mm)
  • Contact Finish: Tin
  • Temperature Range: -40°C to 85°C
  • Application: Board to cable/wire
  • Shrouded: 4 Walls
  • Manufacturer: Wurth Electronics Inc
