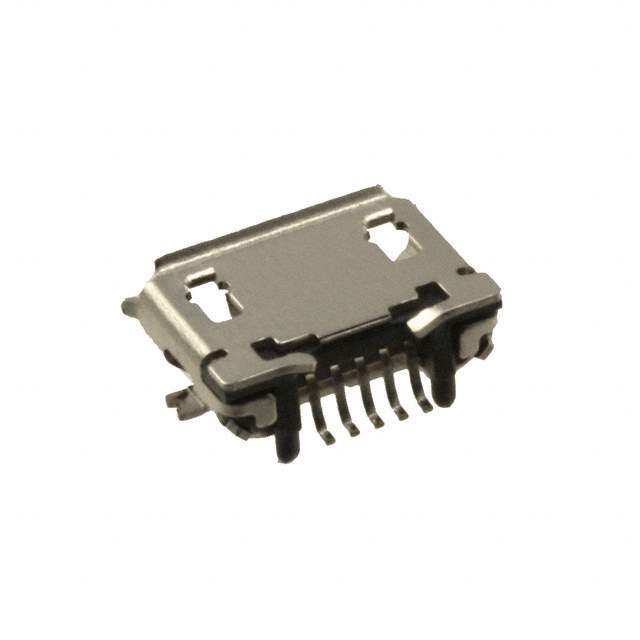

629105136821 Real Image
Same model may have multiple batches, images only for reference.

629105136821

Part No 629105136821
Manufacturer Wurth Electronics Inc
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MICRO B SMD R/A
Datasheet
629105136821 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 22 Weeks
Features USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
Manufacturer Wurth Electronics Inc
Series WR-COM
Package Reel - TR
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount, Right Angle
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 732-3155-6, 732-3155-2, 732-3155-1
Quantity per package 1400
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 844561-629105136821
Ultra Librarian 3D Model Ultra Librarian 629105136821 CAD Model

Description

The 629105136821 is a micro B USB 2.0 receptacle connector designed for portable devices. It has 5 positions and a right-angle surface mount.

  • Current: 1.8A
  • Voltage: 30V
  • Operating Temperature Range: -40°C to 105°C
  • Packaging: reel
