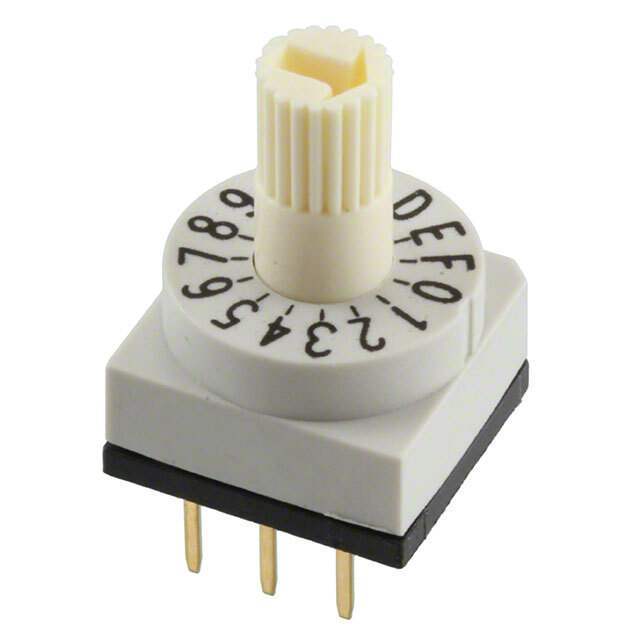

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1306430-428527420917
Category Switches DIP Switches
Manufacturer Würth Elektronik
Packaging Tube
Part Status Active
Circuit Hexadecimal Complement
Number of Positions 16
Current Rating (Amps) 150mA
Voltage Rating 24VDC
Actuator Type Rotary with Shaft
Actuator Level Raised
Ultra Librarian 3D Model Ultra Librarian 428527420917 CAD Model

Description

Dip Switch Hexadecimal Complement 16 Position Through Hole Rotary with Shaft Actuator 150mA 24VDC
