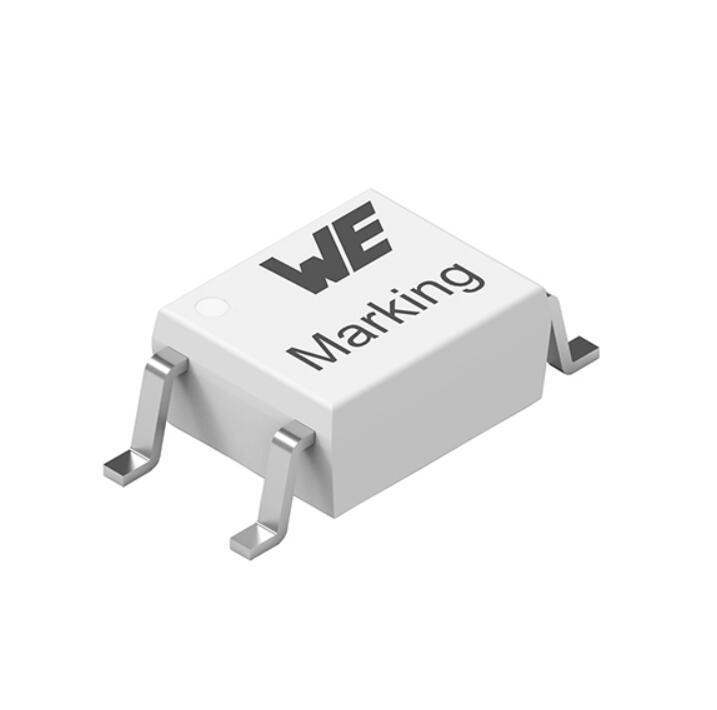

Same model may have multiple batches, images only for reference.
140357145200Würth Elektronik
Same model may have multiple batches, images only for reference.

140357145200

Part No 140357145200
Manufacturer Wurth Electronics Inc
Catalog Optoisolators - Transistor, Photovoltaic Output
Description WL-OCPT OPTOCOUPLER PHOTOTRANSIS
Datasheet
140357145200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202757-140357145200
Win Source Part Number Cross
Manufacturer Würth Elektronik
Category Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Series WL-OCPT
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 130% @ 5mA
Current Transfer Ratio (Max) 260% @ 5mA
Rise / Fall Time (Typ) 3µs, 4µs
Ultra Librarian 3D Model Ultra Librarian 140357145200 CAD Model

Description

The Würth Elektronik WL-OCPT is a photovoltaic output optoisolator from the WL-OCPT series.

  • Series: WL-OCPT
  • Voltage Isolation: 3750Vrms
  • Current Transfer Ratio (Min): 130% @ 5mA
  • Current Transfer Ratio (Max): 260% @ 5mA
  • Rise/Fall Time: 3µs to 4µs
  • Packaging: Tape & reel, cut tape, and Digi-Reel® packages
  • Manufacturer: Würth Elektronik
  • Status: Active
