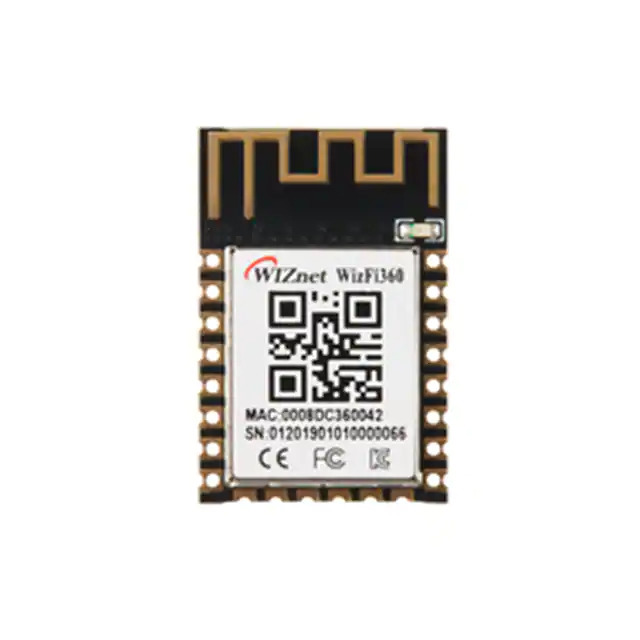

WIZFI360-PA WIZnet
Same model may have multiple batches, images only for reference.

WIZFI360-PA

Part No WIZFI360-PA
Manufacturer WIZnet
Catalog RF Transceiver Modules
Description RF TXRX MOD WIFI TRACE ANT SMD
Datasheet
WIZFI360-PA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr WIZnet
Series -
Package Tape & Reel
Product Status Active
RF Family/Standard WiFi
Protocol 802.11b/g/n
Modulation CCK, DSSS, OFDM
Frequency 2.4GHz ~ 2.4835GHz
Data Rate 72.2Mbps
Power - Output 19dBm
Sensitivity -95dBm
Serial Interfaces UART
Antenna Type Integrated, Trace
Utilized IC / Part -
Memory Size -
Voltage - Supply 3V ~ 3.6V
Current - Receiving 110mA
Current - Transmitting 230mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case Module
Base Product Number WIZFI360
MSL Level Not Applicable
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1370932-WIZFI360-PA
Ultra Librarian 3D Model Ultra Librarian WIZFI360-PA CAD Model

Description

The 1370932-WIZFI360-PA is an RF transceiver module from WIZnet.

  • Operating Temperature: -40°C to 85°C
  • Frequency Range: 2.4GHz to 2.4835GHz
  • WiFi Module: Yes
  • Package: Module
  • Voltage Supply: 3V to 3.6V
  • Data Rate: Up to 72.2Mbps
  • Protocol: 802.11b/g/n
  • Power Output: 19dBm
  • Sensitivity: -95dBm
  • Serial Interface: UART
