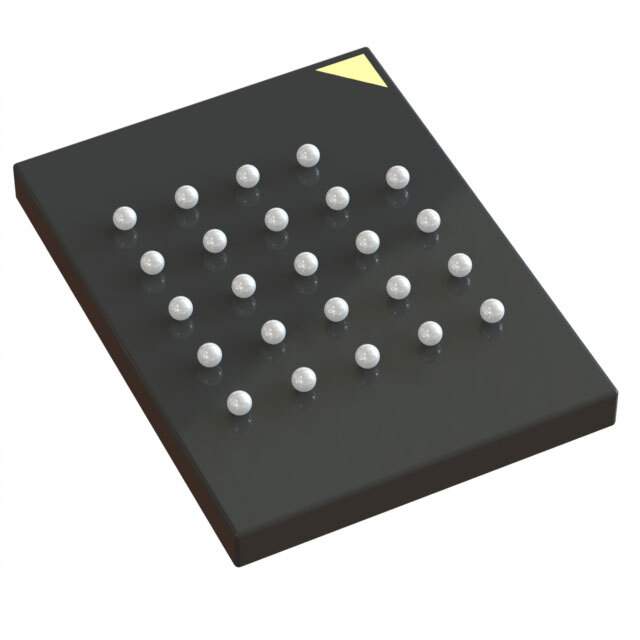

W25Q512NWBIM Real Image
Same model may have multiple batches, images only for reference.

W25Q512NWBIM

Part No W25Q512NWBIM
Manufacturer Winbond Electronics
Catalog Memory
Description IC FLASH 512MBIT SPI 24TFBGA / FLASH - NOR Memory IC 512Mbit SPI - Quad I/O, QPI, DTR 133 MHz 6 ns 24-TFBGA (6x8)
Datasheet
W25Q512NWBIM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Winbond Electronics
Series SpiFlash®
Package Tray
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 512Mbit
Memory Organization 64M x 8
Memory Interface SPI - Quad I/O, QPI, DTR
Clock Frequency 133 MHz
Write Cycle Time - Word, Page 3ms
Access Time 6 ns
Voltage - Supply 1.65V ~ 1.95V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 24-TBGA
Supplier Device Package 24-TFBGA (6x8)
Base Product Number W25Q512
Standard Package 480
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071
Win Source Part Number 1352239-W25Q512NWBIM
Ultra Librarian 3D Model Ultra Librarian W25Q512NWBIM CAD Model

Description

The Winbond Electronics W25Q512NWBIM is a non-volatile memory chip manufactured by Winbond Electronics.

  • Memory Size: 512Mbit
  • Clock Frequency: 133 MHz
  • Interface: SPI
  • Memory Interfaces: Quad I/O, QPI, and DTR
  • Write Cycle Time: 3ms
  • Access Time: 6ns
  • Voltage Supply Range: 1.65V to 1.95V
  • Package: 24-TBGA
