Same model may have multiple batches, images only for reference.

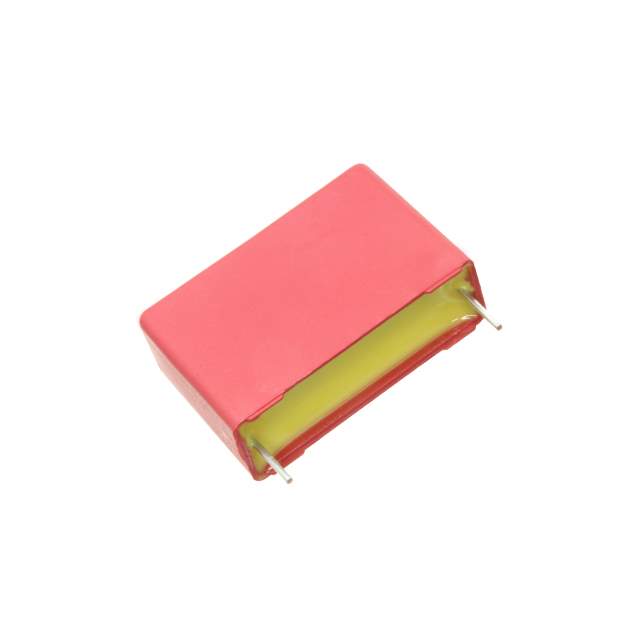

MKP1U022205D00KSSD Real Image
Same model may have multiple batches, images only for reference.

MKP1U022205D00KSSD

Part No MKP1U022205D00KSSD
Manufacturer WIMA
Catalog Film Capacitors
Description CAP FILM 0.022UF 10% 2KVDC RAD / 0.022 µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial
Datasheet
MKP1U022205D00KSSD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr WIMA
Package Bulk
Capacitance 0.022 µF
Tolerance ±10%
Voltage Rating - AC 700V
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.043" L x 0.276" W (26.50mm x 7.00mm)
Height - Seated (Max) 0.650" (16.50mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications High Pulse, DV/DT
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.25.0070
Other Names 1928-1474
Standard Package 760
Win Source Part Number 1029645-MKP1U022205D00KSSD
Ultra Librarian 3D Model Ultra Librarian MKP1U022205D00KSSD CAD Model

Description

The WIMA MKP1U022205D00KSSD is a film capacitor that has a capacitance of 0.022 µF.

  • Voltage Rating: 700V AC and 2000V DC
  • Suitable for: high pulse and DV/DT applications
  • Mounting: through a radial package
  • Lead Spacing: 0.886" (22.50mm)
  • Supply and Demand Status: shortage
  • Alternative Parts: R474I222050A1K, R46KI22200001K, R463I22205001K, B32620A4223K189, MKP1O122204C00KSSD, and B32652A0223K000
