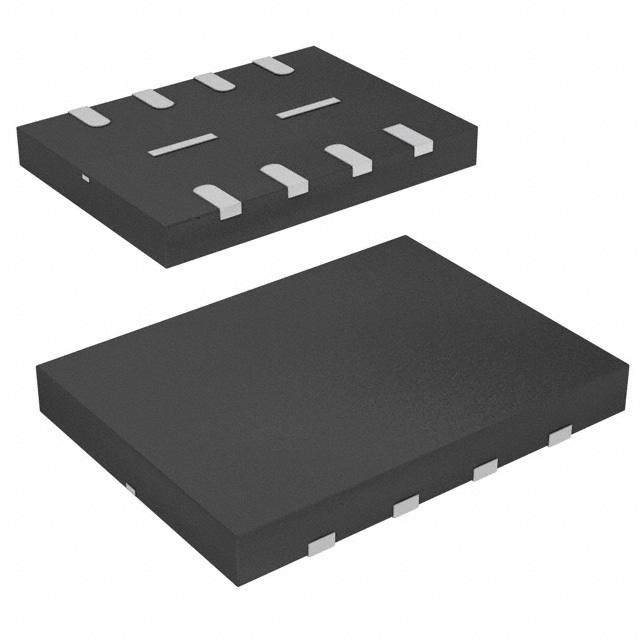

W25Q16JWUUIQ Winbond Electronics
Same model may have multiple batches, images only for reference.

W25Q16JWUUIQ

Part No W25Q16JWUUIQ
Manufacturer Winbond Electronics
Catalog Memory
Description IC FLASH 16MBIT SPI/QUAD 8USON / FLASH - NOR Memory IC 16Mbit SPI - Quad I/O 133 MHz 8-USON (4x3)
Datasheet
W25Q16JWUUIQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Winbond Electronics
Series SpiFlash®
Package Tube
Product Status Active
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 16Mbit
Memory Organization 2M x 8
Memory Interface SPI - Quad I/O
Clock Frequency 133 MHz
Write Cycle Time - Word, Page 3ms
Voltage - Supply 1.65V ~ 1.95V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 8-UFDFN Exposed Pad
Supplier Device Package 8-USON (4x3)
Base Product Number W25Q16
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0071
Win Source Part Number 1353461-W25Q16JWUUIQ
Ultra Librarian 3D Model Ultra Librarian W25Q16JWUUIQ CAD Model

Description

The 1353461-W25Q16JWUUIQ is a memory integrated circuit from Winbond Electronics.

  • Series: SpiFlash®
  • Package: 8-UFDFN Exposed Pad
  • Voltage Supply: 1.65V to 1.95V
  • Temperature Range: -40°C to 85°C
  • Memory Type: Non-Volatile
  • Memory Size: 16Mbit
  • Memory Organization: 2M x 8
  • Memory Interface: SPI - Quad I/O
  • Clock Frequency: 133 MHz
  • Write Cycle Time: 3ms
  • REACH: Unaffected
  • ECCN: EAR99
