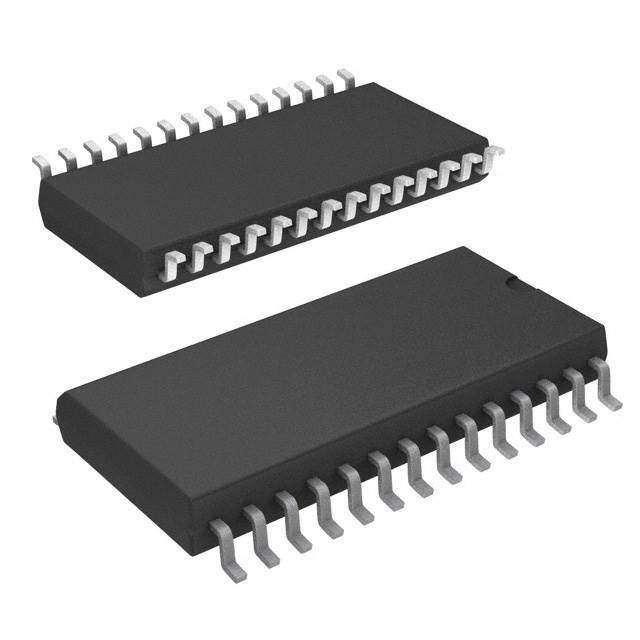

W24257S-70LL Real Image
Same model may have multiple batches, images only for reference.

W24257S-70LL

Part No W24257S-70LL
Manufacturer Winbond Electronics
Catalog SRAM
Description IC SRAM 256KBIT 70NS 28SOP
Datasheet
W24257S-70LL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Winbond Electronics
Packaging Reel - TR
Status Obsolete(EOL)
Memory Type Volatile
Memory Format SRAM
Technology SRAM
Memory Size 256Kb (32K x 8)
Access Time 70ns
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating 0°C to 70°C (TA)
Mounting SMD (SMT)
Case / Package 28-SOP
Win Source Part Number 089176-W24257S-70LL
Family Name W24257
Introduction Date September 30, 1997
ECCN EAR99
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian W24257S-70LL CAD Model

Description

The W24257S-70LL is a 256Kb (32K x 8) SRAM IC from Winbond Electronics.

  • Its: supply and demand status is balanced, which makes it easy to obtain.
  • The: W24257S-70LL is designed to operate with a supply voltage of 4.5V to 5.5V and has an access time of 70ns.
  • It is: available in a 28-pin SOP package.
  • The: W24257S-70LL is RoHS compliant and is manufactured by Winbond Electronics.
  • This IC is: obsolete and has been replaced by alternative parts such as U62H256AS1A55, U62H256AS1K55, and M5M5256DFP-55LL#SM.
