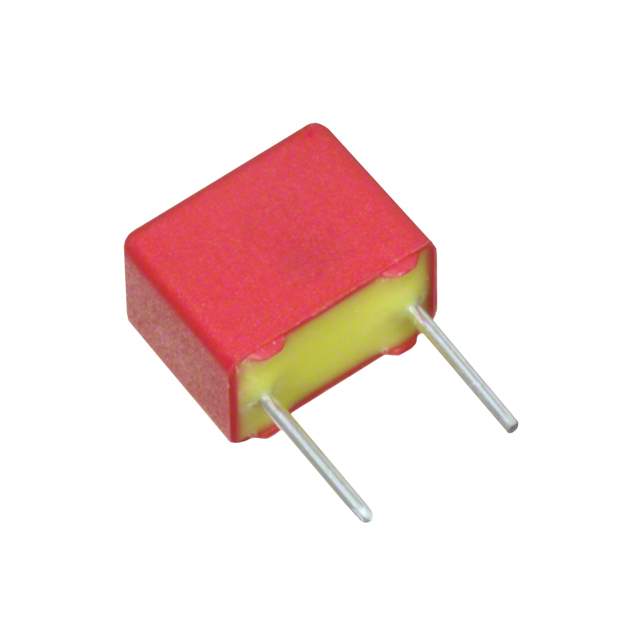

The FKP2C016801D00JSSD is a film capacitor manufactured by WIMA. FKP2 capacitors are known for their high pulse strength and excellent electrical characteristics. These capacitors are constructed with a metallized polypropylene film dielectric, providing exceptional stability and low loss factors. The 'FKP' designation indicates a film capacitor with a polypropylene dielectric, which offers superior performance in demanding applications.

Applications

• Snubber circuits
• High-frequency power supplies
• Pulse circuits
• Audio equipment
• Lighting ballasts

Features

• Metallized polypropylene film dielectric
• High pulse strength
• Low loss factor
• Self-healing properties
• Flame retardant epoxy resin coating
• RoHS compliant

Benefits

• Reliable performance: The polypropylene film dielectric ensures stable and reliable operation even under high-stress conditions.
• Long lifespan: The self-healing properties of the metallized film extend the capacitor's lifespan by automatically clearing minor faults.
• Excellent electrical characteristics: Low loss factor and high insulation resistance contribute to efficient circuit performance.
• Safe operation: The flame-retardant epoxy resin coating provides enhanced safety in case of failure.
• Versatile application: Suitable for a wide range of applications requiring high pulse strength and reliable performance.

Technical Specifications

The FKP2C016801D00JSSD capacitor typically has a capacitance value around 6800pF (6.8nF) with a tolerance of 5%. The voltage rating is typically in the hundreds of volts (DC). The operating temperature range is typically from -55°C to +100°C or higher. Detailed specifications, including voltage rating, capacitance tolerance, and temperature coefficient, can be found in the manufacturer's datasheet. These capacitors are commonly used in circuits where high pulse currents and voltages are present, such as in snubber circuits for IGBTs and MOSFETs.
