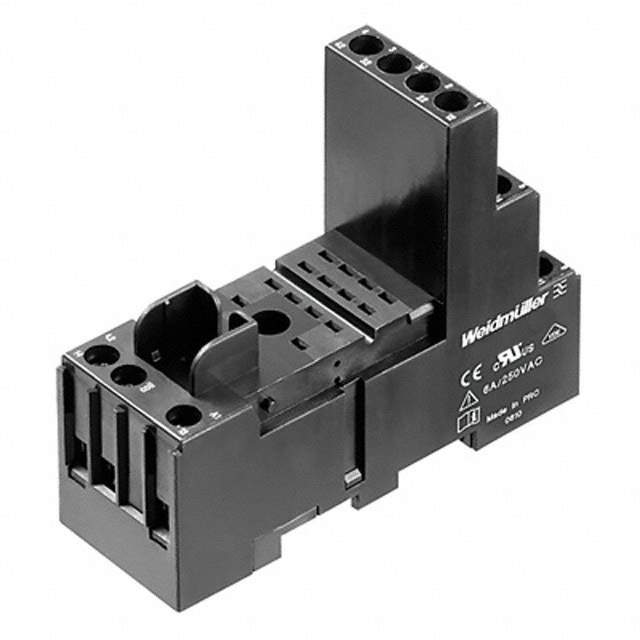

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Relay Sockets
Mfr Weidmuller
Series RCM
Package Bulk
Type Socket
Number of Positions 14
Mounting Type DIN Rail
Termination Style Screw Terminal
For Use With/Related Products RCM Relays
Features -
RoHS Status Not applicable
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Standard Package 10 pcs
Win Source Part Number 1381219-8869420000
Ultra Librarian 3D Model Ultra Librarian 8869420000 CAD Model

Description

The RCM Relay Socket is a versatile and reliable component designed for use with RCM Relays. With 14 positions, this socket allows for easy installation and connection of the relays. The termination style of the socket is a screw terminal, ensuring a secure and stable connection. The socket is designed for mounting on a DIN rail, providing convenience and flexibility in installation. Manufactured by Weidmuller, a trusted name in the industry, this socket offers high quality and durability.

  • Positions: 14
  • Termination Style: Screw Terminal
  • Mounting: DIN Rail
  • Manufacturer: Weidmuller
  • Package Quantity: 10
  • REACH: Not Affected
  • ECCN: EAR99
