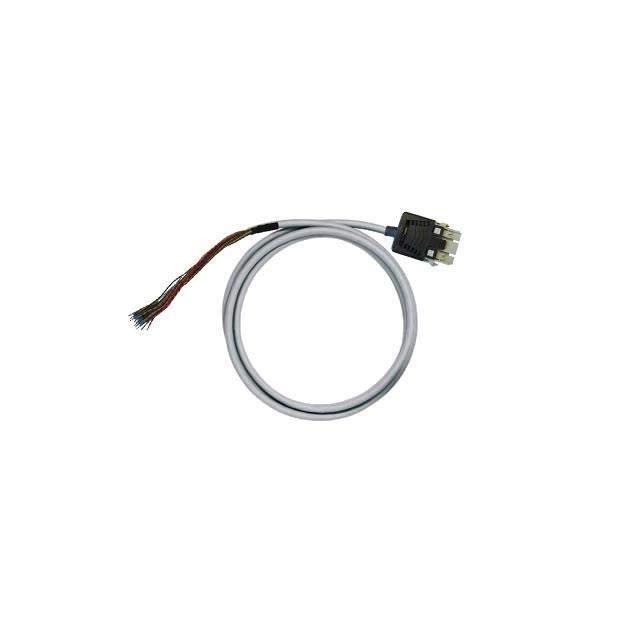

7789104020 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Industrial Automation and Controls - Controllers - Cable Assemblies
Mfr Weidmüller
Package Bulk
Process Side Connection Rectangular Connector
Control Side Connection Controller Specific Connector
Specifications Interface
Number of Positions 24
Length 6.56' (2.00m)
For Use With/Related Products Multiple Series
Approval Agency cULus, UL
Standard Package 1
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.42.9090
Win Source Part Number 1339845-7789104020
Ultra Librarian 3D Model Ultra Librarian 7789104020 CAD Model

Description

The Weidmüller 7789104020 is a 24-position controller cable assembly designed for use with multiple series.

  • Length: 6.56' (2.00m)
  • Packaging: Bulk
  • Process Side Connection: Rectangular Connector
  • Control Side Connection: Controller-Specific Connector
  • Approvals: cULus and UL
  • HTSUS: 8544.42.9090
