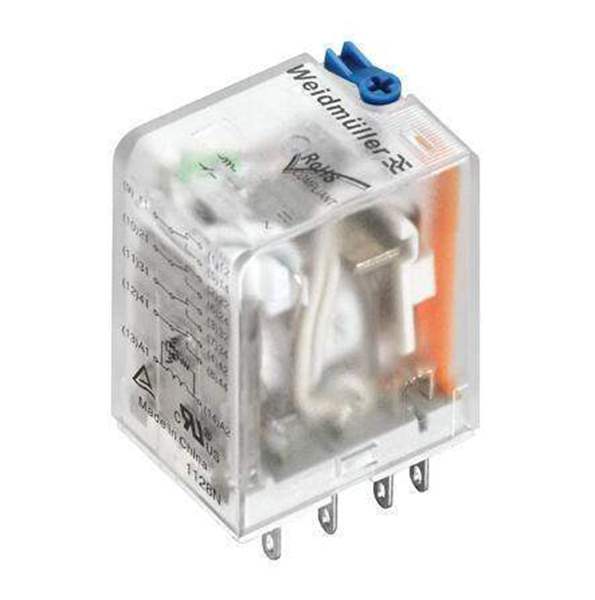

7760056097Weidmüller
Same model may have multiple batches, images only for reference.

7760056097

Part No 7760056097
Manufacturer Weidmuller
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 5A 24V
Datasheet
7760056097 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Relays Power Relays, Over 2 Amps
Product Status Active
Mounting Type Socketable
Contact Form 4PDT (4 Form C)
Switching Voltage 250VAC - Max
Coil Current 36.9 mA
Termination Style Plug In
Must Operate Voltage 18 VDC
Win Source Part Number WS1210899-7760056097
Ultra Librarian 3D Model Ultra Librarian 7760056097 CAD Model

Description

General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable
