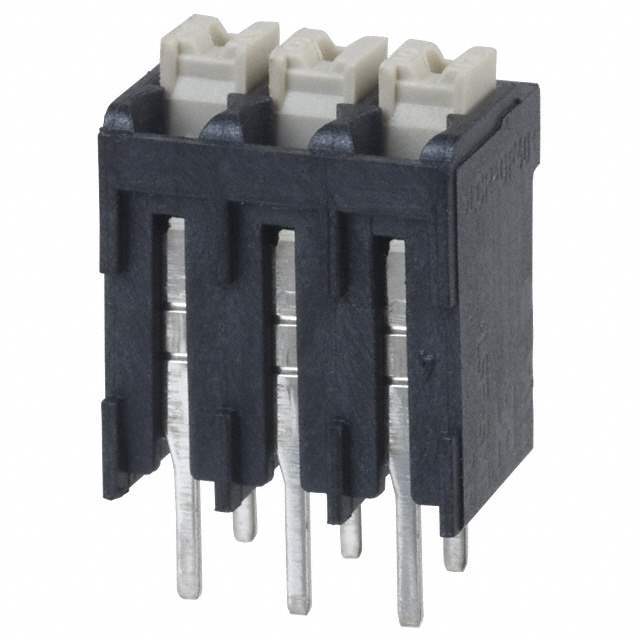

1825650000Weidmüller
Same model may have multiple batches, images only for reference.

1825650000

Part No 1825650000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description TERM BLK 3P TOP ENTRY 3.5MM PCB
Datasheet
1825650000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1204484-1825650000
Manufacturer Weidmüller
Category Connectors, Interconnects -Terminal Blocks- Wire to Board
Series Omnimate LSF-SMT
Package Tube
Product Status Active
Number of Levels 1
Positions Per Level 3
Pitch 0.138" (3.50mm)
Mating Orientation Vertical with Board
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian 1825650000 CAD Model

Description

3 Position Wire to Board Terminal Block Vertical with Board 0.138" (3.50mm) Through Hole
