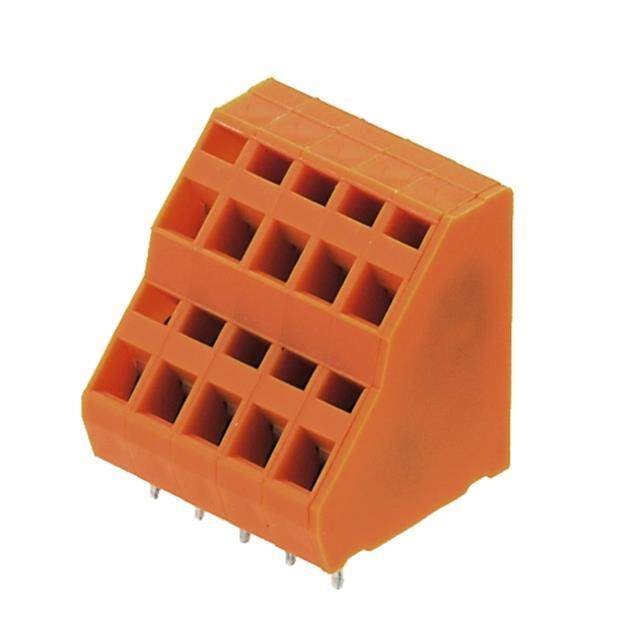

1764860000 Real Image
Same model may have multiple batches, images only for reference.

1764860000

Part No 1764860000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description TERM BLOCK 7POS 45DEG 5.08MM PCB / 7 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.200" (5.08mm) Through Hole
Datasheet
1764860000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr Weidmüller
Series Omnimate LMZF
Package Bulk
Number of Levels 2
Positions Per Level 7
Pitch 0.200" (5.08mm)
Mating Orientation 45° (135°) Angle with Board
Current 10 A
Voltage 300 V
Wire Gauge 14-24 AWG
Mounting Type Through Hole
Wire Termination Screwless - Spring Cage, Tension Clamp
Color Orange
Temperature Range - Operating -50°C ~ 100°C
Housing Material Polyamide (PA) , Nylon
Contact Material - Plating Copper Alloy - Tin Plated
Standard Package 20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350572-1764860000
Ultra Librarian 3D Model Ultra Librarian 1764860000 CAD Model

Description

The Omnimate LMZF wire-to-board terminal block from Weidmüller is designed for use in applications with a voltage of 300V and a current of 10A.

  • Manufacturer: Weidmüller
  • Product Name: Omnimate LMZF
  • Voltage: 300V
  • Current: 10A
  • Pitch: 0.200" (5.08mm)
  • Color: Orange
  • Positions per Level: 7
  • Number of Levels: 2
  • Wire Gauge Range: 14-24 AWG
  • Wire Termination: Screwless-Spring Cage, Tension Clamp
  • Housing Material: Polyamide (PA) and Nylon
  • Temperature Range: -50°C to 100°C
  • Mounting Type: Through-Hole
