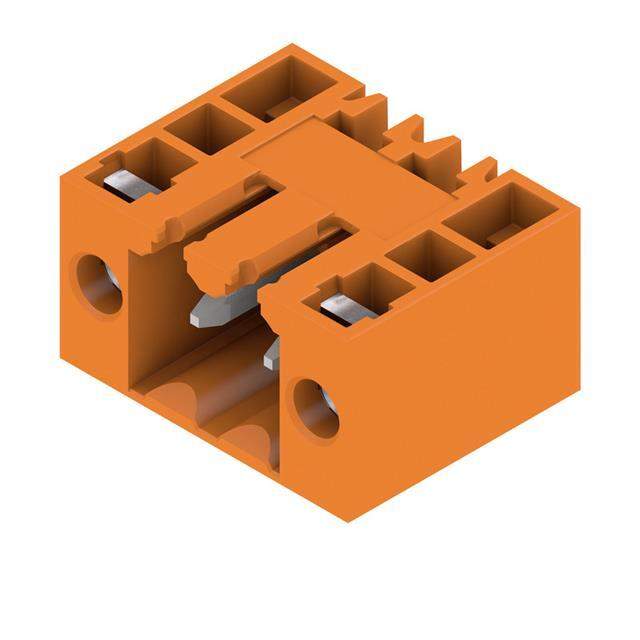

1607040000

Name: 1607040000
Brand: Weidmuller
SKU: 538712
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1607040000
Manufacturer	Weidmuller
Catalog	Terminal Blocks
Description	SL 3.5/2/90F3.2SN OR \| TERM BLOCK HDR 2POS 90DEG 3.5MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Weidmuller
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	2
Positions Per Level	2
Number of Levels	1
Pitch	0.138" (3.50mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting Style	Through Hole
Current - IEC	17A
Voltage - IEC	320V
Current - UL	10A
Voltage - UL	300V
Color	Orange
Temperature Range - Operating	-50°C ~ 100°C
Contact Mating Finish	Tin
Features	Mating and Mounting Flange
Material Flammability Rating	UL94 V-0
Ingress Protection	IP10
Contact Material	Copper Alloy
Dielectric Material	Polybutylene Terephthalate (PBT)
Contact Tail Length	0.126" (3.20mm)
Insulation Height	0.295" (7.50mm)
Manufacturer Pack Quantity	100
Win Source Part Number	1121400-1607040000
Manufacturer Homepage	www.weidmuller.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 1607040000 CAD Model

Description

The Weidmuller 1121400-1607040000 header is a male pin shrouded connector with 4 sides.

Positions per Level: 2
Levels: 1
Pitch: 0.138 inches (3.50mm)
Header Orientation: 90 degrees right angle
Termination Style: Solder
Mounting Style: Through-Hole
Current Rating: 17A (IEC), 10A (UL)
Voltage Rating: 320V (IEC), 300V (UL)
Contact Mating Finish: Tin
Contact Material: Copper Alloy
Ingress Protection: IP10
Material Flammability Rating: UL94 V-0
Dielectric Material: Polybutylene Terephthalate (PBT)
Insulation Height: 0.295 inches (7.50mm)
