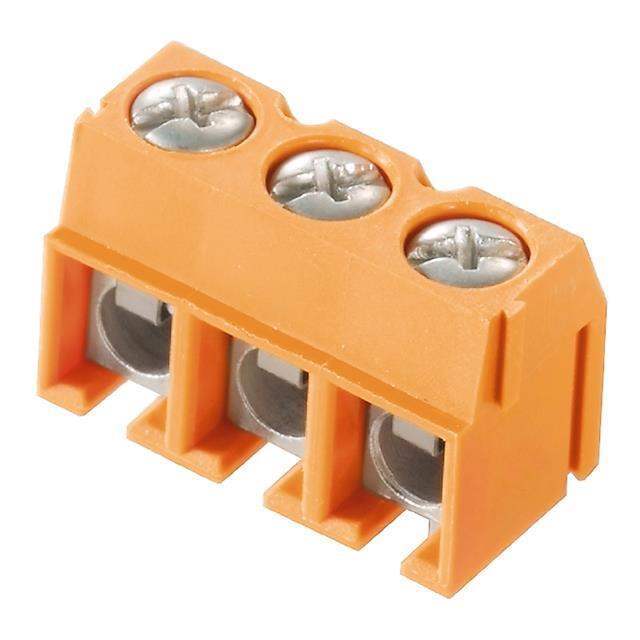

Same model may have multiple batches, images only for reference.
1234550000 Weidmüller
Same model may have multiple batches, images only for reference.

1234550000

Part No 1234550000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description PM 5.08/04/90 3.5SN OR BX
Datasheet
1234550000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310383-1234550000
Manufacturer Weidmüller
Category Connectors, Interconnects > Terminal Blocks > Wire to Board
Packaging Bulk
Part Status Active
Number of Levels 1
Positions Per Level 4
Pitch 0.200" (5.08mm)
Mating Orientation Horizontal with Board
Mounting Type Through Hole
Wire Termination Screw - Pressure Clip
Features Interlocking (Side)
Color Orange
Operating Temperature -50°C ~ 120°C
Housing Material Thermoplastic, Wemid
Contact Material - Plating Copper Alloy - Tin Plated
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Ultra Librarian 3D Model Ultra Librarian 1234550000 CAD Model

Description

PCB terminal with leaf spring connection at 5.00 and 5.08 mm pitch. Conductor outlet direction 90°. Suitable for conductor cross-sections up to 2.5 mm².
