Same model may have multiple batches, images only for reference.

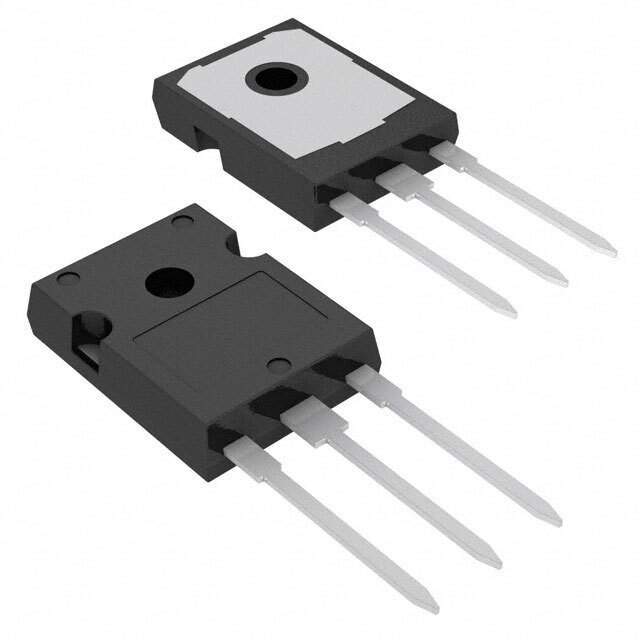

BYC30WT-600PQ Real Image
Same model may have multiple batches, images only for reference.

BYC30WT-600PQ

Part No BYC30WT-600PQ
Manufacturer WeEn Semiconductors
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 30A TO247-3 / Diode Standard 600 V 30A Through Hole TO-247-3
Datasheet
BYC30WT-600PQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr WeEn Semiconductors
Package Tube
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Max) @ If 2.75 V @ 30 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 22 ns
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247-3
Operating Temperature - Junction 175°C (Max)
Base Product Number BYC30
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 934068091127
Standard Package 600
Win Source Part Number 1050154-BYC30WT-600PQ
Ultra Librarian 3D Model Ultra Librarian BYC30WT-600PQ CAD Model

Description

The BYC30WT-600PQ is a standard diode from WeEn Semiconductors.

  • Category: Discrete Semiconductor Products>Diodes - Rectifiers - Single
  • Package: Tube
  • Standard Packaging: 600
  • Voltage DC Reverse (Vr): 600 V
  • Current Average Rectified (Io): 30A
  • Voltage Forward (Vf) (Max) @ If: 2.75 V @ 30 A
  • Reverse Recovery Time (trr): 22 ns
  • Current Reverse Leakage @ Vr: 10 µA @ 600 V
  • Package: TO-247-3
  • Supplier Device Package: TO-247-3
