Same model may have multiple batches, images only for reference.

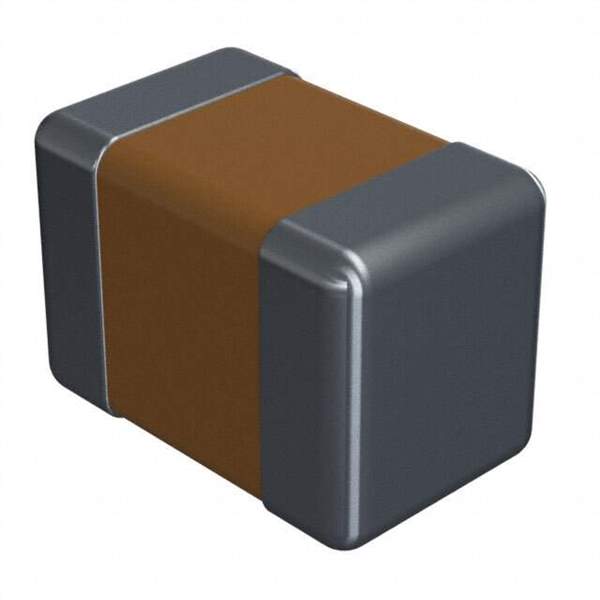

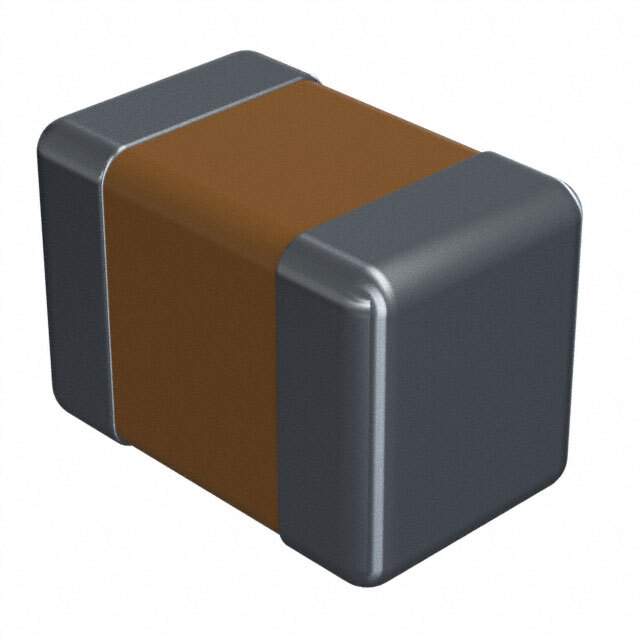

0805B684K250CT Real Image
Same model may have multiple batches, images only for reference.

0805B684K250CT

Part No 0805B684K250CT
Manufacturer Walsin Technology Corporation
Catalog Ceramic Capacitors
Description MLCC 0.68UF 25V X7R 0805 / 0.68 µF ±10% 25V Ceramic Capacitor X7R 0805 (2012 Metric)
Datasheet
0805B684K250CT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Manufacturer Walsin Technology Corporation
Packaging Reel - TR
Capacitance 0.68 µF
Tolerance ±10%
Voltage - Rated 25V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Surface Mount, MLCC
Case / Package 0805 (2012 Metric)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Thickness (Max) 0.053" (1.35mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number 1292-0805B684K250CTTR
Standard Package 3,000
Win Source Part Number 1330765-0805B684K250CT
Ultra Librarian 3D Model Ultra Librarian 0805B684K250CT CAD Model

Description

This Walsin Technology Corporation ceramic capacitor is perfect for general purpose applications.

  • Manufacturer: Walsin Technology Corporation
  • Capacitance: 0.68 μF
  • Voltage Rating: 25V
  • Mounting Type: Surface Mount, MLCC
  • Temperature Coefficient: X7R
  • Temperature Range: -55°C to 125°C
  • Case/Package Size: 0805 (2012 Metric) 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Thickness: 0.053" (1.35mm)
  • Tolerance: ±10%
  • Standard Package: 3,000
  • ROHS3 Compliant: Yes
