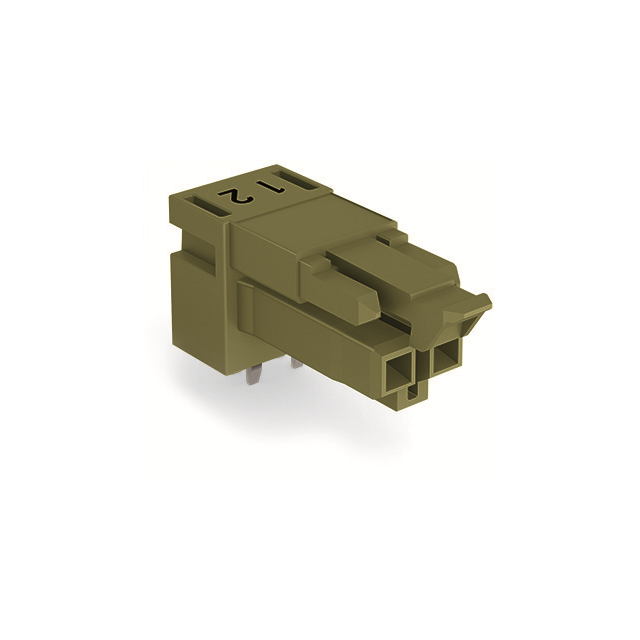

The 1170846-890-862/011-000 electronic component is a part of the WINSTA® MINI series manufactured by WAGO Corporation.

• Type: This female socket header comes with two positions per level and one level with a pitch of 0.173 inches (4.40mm).
• Orientation: It has an orientation of 90 degrees and a right angle header.
• Current Capacity: This component has a current capacity of 16A (IEC) and 14A (UL) with a voltage capacity of 250V (IEC) and 600V (UL).
• Wire Accommodation: It can accommodate wire gauge or range of 16-22 AWG and 0.25-1.5mm² (mm2).
• Housing Material: Its housing material is made of polyamide (PA66), Nylon 6/6, and it has an ingress protection of IP40.
• Operating Temperature: Its temperature range for operation is -35°C to 85°C.
• Package: This component comes in a box package, and its ECCN is EAR99.
• HTSUS: Its HTSUS is 8536.90.4000.
• Other Part Numbers: Other part numbers for this component include 890862/011000, 0890-0862/0011-0000, 51279013, 0890-862/011-000, 0890862/011000, 2946-890-862/011-000, 2943-890-862/011-000-ND, and 2943-890-862/011-000.
