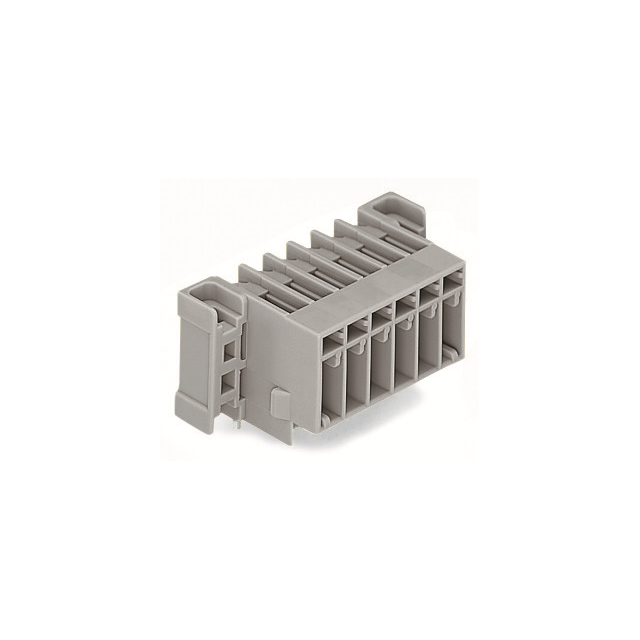

Same model may have multiple batches, images only for reference.

769-663/003-000

Name: 769-663/003-000
Brand: WAGO Corporation
SKU: 1151635
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	769-663/003-000
Manufacturer	WAGO Corporation
Catalog	Terminal Blocks
Description	THT MALE HEADER; 1.0 X 1.0 MM SO / 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks - Headers, Plugs and Sockets
Mfr	WAGO Corporation
Series	X-COM®
Package	Box
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	3
Positions Per Level	3
Number of Levels	1
Pitch	0.197" (5.00mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	32A
Voltage - IEC	500 V
Color	Gray
Features	Locking Ramp, Mounting Flange
Material Flammability Rating	UL94 V-0
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Tail Length	0.039" (1.00mm)
Insulation Height	0.720" (18.29mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	0769663/003000,2943-769-663/003-000-ND,51121852,2946-769-663/003-000,2943-769-663/003-000,0769-0663/0003-0000,769663/003000,0769-663/003-000
Standard Package	1
Win Source Part Number	1151635-769-663/003-000
Ultra Librarian 3D Model	Ultra Librarian 769-663/003-000 CAD Model

Alternative Products

Description

The X-COM® header is a male pins, shrouded (4 side) connector from WAGO Corporation.

Positions per Level: 3
Levels: 1
Pitch: 0.197" (5.00mm)
Current-IEC: 32A
Voltage-IEC: 500V
Suitable for: Terminal blocks - headers, plugs, and sockets
Features: Locking ramp and mounting flange
Color: Gray
MSL Level: 1 (Unlimited)
HTSUS: 8536.90.4000
