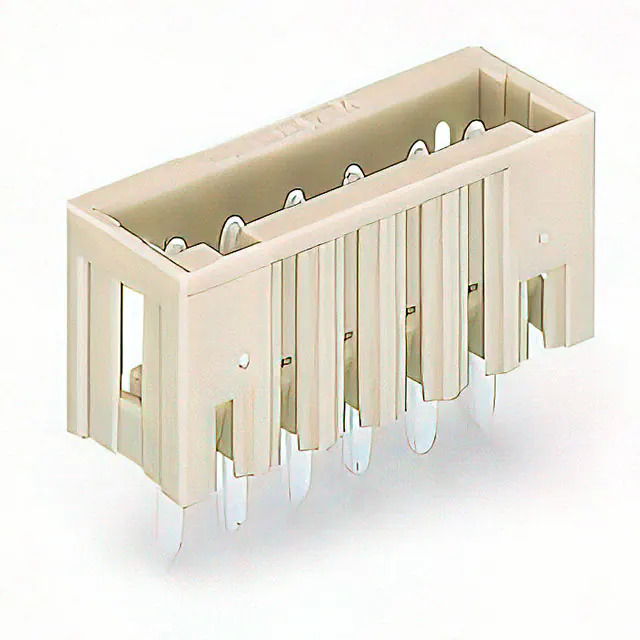

734-136 WAGO Corporation
Same model may have multiple batches, images only for reference.

734-136

Part No 734-136
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets
Description THT MALE HEADER; 1.0 X 1.0 MM SO / 6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr WAGO Corporation
Series MCSMINI
Package Box
Product Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Positions Per Level 6
Number of Levels 1
Pitch 0.138" (3.50mm)
Header Orientation Vertical
Plug Wire Entry -
Termination Style Solder
Mounting Type Through Hole
Current - IEC 10A
Voltage - IEC 320 V
Current - UL 10 A
Voltage - UL 300 V
Wire Gauge or Range - AWG -
Wire Gauge or Range - mm² -
Color Gray
Temperature Range - Operating -60°C ~ 100°C
Contact Mating Finish Tin
Features -
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length -
Contact Material Electrolytic Copper
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length 0.177" (4.50mm)
Insulation Height 0.406" (10.31mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364654-734-136
Ultra Librarian 3D Model Ultra Librarian 734-136 CAD Model

Description

The WAGO Corporation MCSMINI Header is a male pin shrouded connector with 4 sides.

  • Application: Connectors, Interconnects, and Terminal Blocks
  • Operating Temperature: -60°C to 100°C
  • Orientation: Vertical
  • Mounting Type: Through Hole
  • Positions: 6
  • Insulation Height: 0.406" (10.31mm)
  • Contact Material: Electrolytic Copper
  • Housing Material: Polyamide (PA66) and Nylon 6/6
  • Current Rating (IEC): 10A
  • Current Rating (UL): 10A
  • Voltage Rating (UL): 300V
  • Contact Mating Finish: Tin
  • Material Flammability Rating: UL94 V-0
  • Product Status: Active
