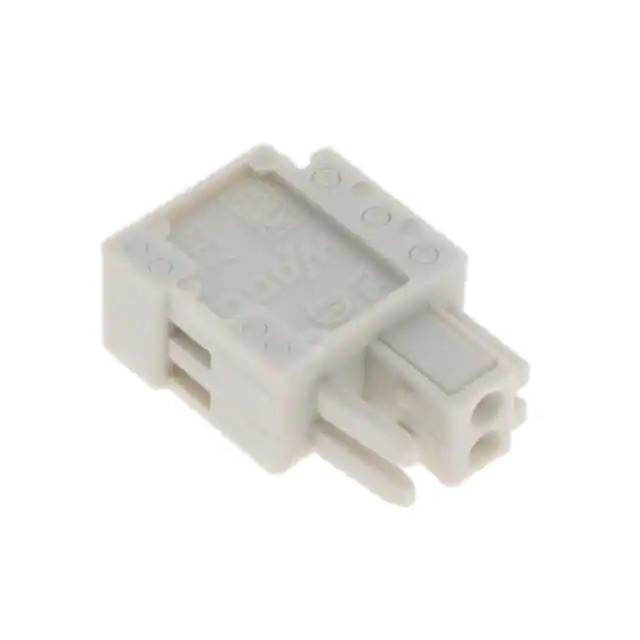

733-102

Name: 733-102
Brand: WAGO Corporation
SKU: 1364641
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	733-102
Manufacturer	WAGO Corporation
Catalog	Headers, Plugs and Sockets
Description	1-CONDUCTOR FEMALE PLUG; 100% PR / 2 Position Terminal Block Plug, Female Sockets 0.098" (2.50mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	WAGO Corporation
Series	MCSMICRO
Package	Bulk
Product Status	Active
Type	Plug, Female Sockets
Number of Positions	2
Positions Per Level	2
Number of Levels	1
Pitch	0.098" (2.50mm)
Header Orientation	-
Plug Wire Entry	180°
Termination Style	Screwless - Spring Cage, Tension Clamp
Mounting Type	Free Hanging (In-Line)
Current - IEC	6A
Voltage - IEC	320 V
Current - UL	4 A
Voltage - UL	150 V
Wire Gauge or Range - AWG	20-28 AWG
Wire Gauge or Range - mm²	0.08-0.5mm²
Color	Gray
Temperature Range - Operating	-60°C ~ 100°C
Contact Mating Finish	Tin
Features	Retention Latches (Non-Wire Side)
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	-
Torque - Screw	-
Wire Strip Length	5-6mm
Contact Material	Copper Alloy
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Tail Length	-
Insulation Height	0.465" (11.80mm)
Base Product Number	733
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1364641-733-102
Ultra Librarian 3D Model	Ultra Librarian 733-102 CAD Model

Alternative Products

Description

The 733-102 is a plug and female socket terminal block header from WAGO Corporation's MCSMICRO series.

Series: MCSMICRO
Package: Bulk
Retention Latches: On the non-wire side
Color: Gray
Material: Polyamide (PA66) and Nylon 6/6
Positions: 2
Wire Gauge: 20-28 AWG (0.08-0.5mm²)
Current Rating (IEC): 6A
Current Rating (UL): 4A
Voltage Rating (UL): 150V
Mounting: Free-Hanging (In-Line)
Flammability Rating: UL94 V-0
REACH: Unaffected
