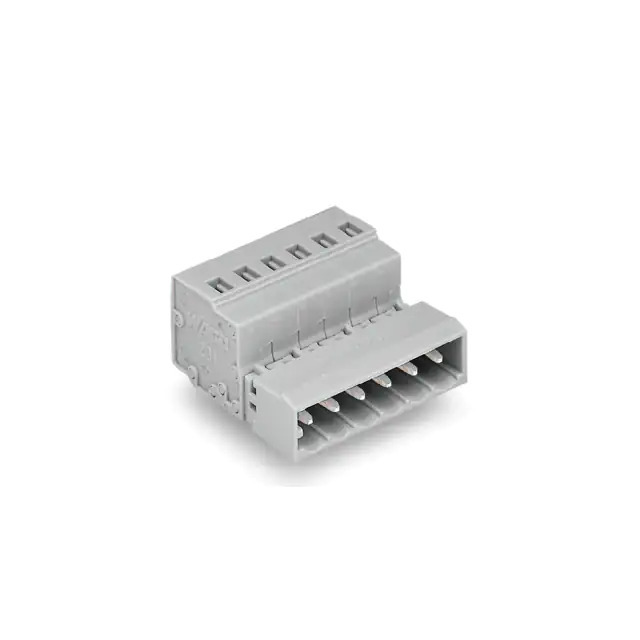

Same model may have multiple batches, images only for reference.

231-602

Name: 231-602
Brand: WAGO Corporation
SKU: 1364626
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	231-602
Manufacturer	WAGO Corporation
Catalog	Headers, Plugs and Sockets
Description	1-CONDUCTOR MALE CONNECTOR; 2.5 / 2 Position Terminal Block Plug, Male Pins 0.197" (5.00mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	WAGO Corporation
Series	MCSMIDI Classic
Package	Box
Product Status	Active
Type	Plug, Male Pins
Number of Positions	2
Positions Per Level	2
Number of Levels	1
Pitch	0.197" (5.00mm)
Header Orientation	-
Plug Wire Entry	180°
Termination Style	Screwless - Spring Cage, Tension Clamp
Mounting Type	Free Hanging (In-Line)
Current - IEC	12A
Voltage - IEC	630 V
Current - UL	15 A
Voltage - UL	600 V
Wire Gauge or Range - AWG	12-28 AWG
Wire Gauge or Range - mm²	0.08-2.5mm²
Color	Gray
Temperature Range - Operating	-60°C ~ 100°C
Contact Mating Finish	Tin
Features	-
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	-
Torque - Screw	-
Wire Strip Length	8-9mm
Contact Material	Electrolytic Copper
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Tail Length	-
Insulation Height	0.563" (14.30mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1364626-231-602
Ultra Librarian 3D Model	Ultra Librarian 231-602 CAD Model

Description

The 1364626-231-602 is a plug connector with male pins from WAGO Corporation.

Series: MCSMIDI Classic
Mounting: Free-Hanging (In-Line)
Temperature Range: -60°C to 100°C
Current Rating: 12A
Voltage Rating: 630V
Termination Style: Screwless Spring Cage and Tension Clamp
Housing Material: Polyamide (PA66) and Nylon 6/6
Color: Gray
Package: Box
Positions: 2
HTSUS Code: 8536.90.4000
ECCN: EAR99
