Same model may have multiple batches, images only for reference.

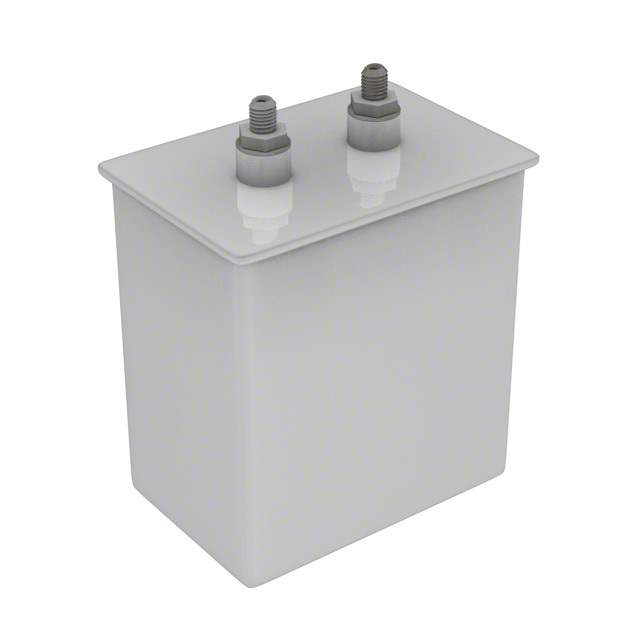

SCRN256R-F Real Image
Same model may have multiple batches, images only for reference.

SCRN256R-F

Part No SCRN256R-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SCRN256R-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCR
Package Bulk
Capacitance 10 µF
Tolerance ±10%
Voltage Rating - AC 2000Vpk (2KVPK)
Dielectric Material Paper, Metallized
Temperature Range - Operating -40°C ~ 80°C
Mounting Type Chassis Mount, Requires Holder/Bracket
Package / Case Radial, Can
Dimension 4.560" L x 3.750" W (115.82mm x 95.25mm), Lip
Height - Seated (Max) 5.810" (147.57mm)
Termination Threaded, Male
Lead Spacing 2.000" (50.80mm)
Applications Commutation; High Frequency, Switching; High Pulse, DV/DT
Other Names SCRN256R-F,338-3589,338-4506,338-4506,SCRN256RF
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0040
Win Source Part Number 1302649-SCRN256R-F
Ultra Librarian 3D Model Ultra Librarian SCRN256R-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) SCR series is a film capacitor with a capacitance of 10 µF and a voltage rating of 2000Vpk (2KVPK).

  • Capacitance: 10 µF
  • Voltage Rating: 2000Vpk (2KVPK)
  • Application: Designed for commutation, high frequency switching, and high pulse, DV/DT applications
  • Mounting: Chassis mountable and requires a holder/bracket
  • Package: Radial can with a lip
  • Termination: Threaded, male termination
  • Temperature Range: -40°C to 80°C
  • Tolerance: ±10%
  • Dielectric Material: Paper, metallized
