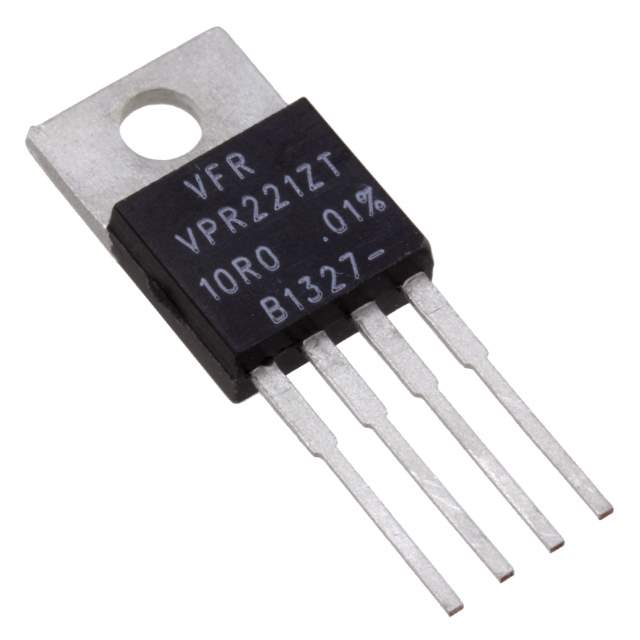

Same model may have multiple batches, images only for reference.

Y16901R00000F9L

Name: Y16901R00000F9L
Brand: Vishay
SKU: 1338460
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	Y16901R00000F9L
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 1 OHM 8W 1% TO220-4 / 1 Ohms ±1% 8W Through Hole Resistor TO-220-4 Moisture Resistant, Non-Inductive Metal Foil
Datasheet	Y16901R00000F9L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors - Through Hole Resistors
Mfr	Vishay Foil Resistors (Division of Vishay Precision Group)
Series	VPR221Z
Package	Bulk
Resistance	1 Ohms
Tolerance	±1%
Power (Watts)	8W
Composition	Metal Foil
Features	Moisture Resistant, Non-Inductive
Temperature Coefficient	±0.2ppm/°C
Temperature Range - Operating	-55°C ~ 150°C
Package / Case	TO-220-4
Supplier Device Package	TO-220
Size / Dimension	0.400" L x 0.150" W (10.16mm x 3.81mm)
Height - Seated (Max)	0.845" (21.46mm)
Number of Terminations	4
Standard Package	25
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8533.21.0090
Win Source Part Number	1338460-Y16901R00000F9L
Ultra Librarian 3D Model	Ultra Librarian Y16901R00000F9L CAD Model

Alternative Products

Description

The VPR221Z series resistor is a metal foil resistor that features a tolerance of ±1% and a temperature coefficient of ±0.2ppm/°C.

Series: VPR221Z
Tolerance: ±1%
Temperature Coefficient: ±0.2ppm/°C
Power (Watts): 8W
Resistance: 1 Ohms
Package / Case: TO-220-4
Feature: Moisture Resistant, Non-Inductive
Mounting Type: Through Hole
Size / Dimension: 0.400" L x 0.150" W (10.16mm x 3.81mm)
Height - Seated (Max): 0.845" (21.46mm)
Packaging: Bulk
Standard Package: 25
Manufacturer: Vishay Foil Resistors, a division of Vishay Precision Group
