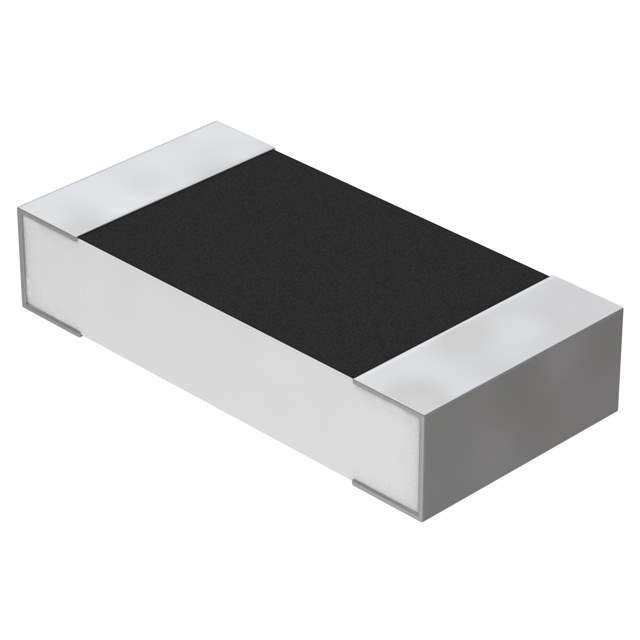

Y162524K0000B9W Real Image
Same model may have multiple batches, images only for reference.

Y162524K0000B9W

Part No Y162524K0000B9W
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 24K OHM 0.1% 0.3W 1206  /  24 kOhms ±0.1% 0.3W Chip Resistor 1206 (3216 Metric) Moisture Resistant, Non-Inductive Metal Foil
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Foil Resistors (Division of Vishay Precision Group)
Series VSMP
Package Tray
Resistance 24 kOhms
Tolerance ±0.1%
Power (Watts) 0.3W
Composition Metal Foil
Features Moisture Resistant, Non-Inductive
Temperature Coefficient ±0.2ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 0.126" L x 0.062" W (3.20mm x 1.57mm)
Height - Seated (Max) 0.025" (0.64mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Standard Package 1,000
Win Source Part Number 1214868-Y162524K0000B9W
Ultra Librarian 3D Model Ultra Librarian Y162524K0000B9W CAD Model

Description

The Vishay Foil Resistors VSMP series 1214868-Y162524K0000B9W is a chip resistor designed for surface mount applications.

  • Features: Moisture Resistance and Non-Inductive Properties
  • Package: Tray with 1000 resistors
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±0.2ppm/°C
  • Power Rating: 0.3W
  • Composition: Metal Foil
  • Resistance: 24kOhms
  • Package/Case: 1206 (3216 Metric)
  • Supplier Device Package: 1206
  • Operating Temperature Range: -55°C to 150°C
