Same model may have multiple batches, images only for reference.

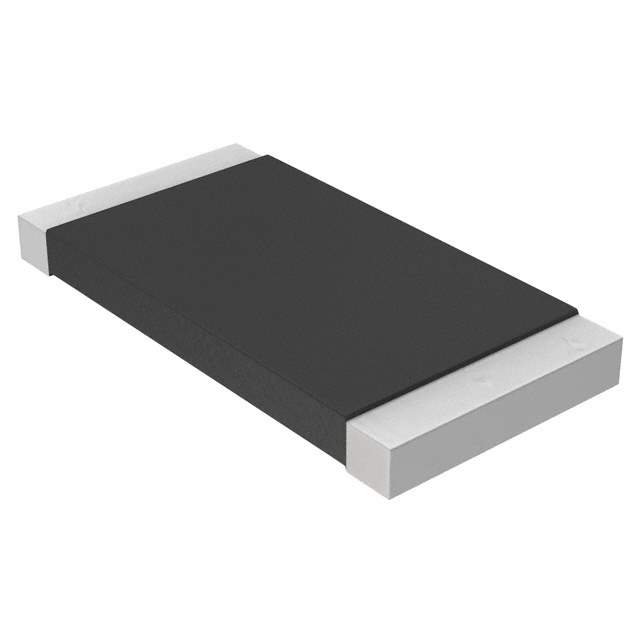

WSL2512R0700FEA Real Image
Same model may have multiple batches, images only for reference.

WSL2512R0700FEA

Part No WSL2512R0700FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 0.07 OHM 1% 1W 2512
Datasheet
WSL2512R0700FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Resistance (Ohms) 0.07
Tolerance ±1%
Power (Watts) 1W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C to 170°C
Case / Package 2512
Height - Seated (Max) 0.035" (0.89mm)
Number of Terminations 2
Win Source Part Number 114397-WSL2512R0700FEA
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Automotive
Ultra Librarian 3D Model Ultra Librarian WSL2512R0700FEA CAD Model

Description

The WSL2512R0700FEA is a metal element resistor manufactured by Vishay.

  • Power: 1W
  • Resistance: 0.07 ohms
  • Tolerance: ±1%
  • Designed for: automotive applications
  • AEC-Q200 compliant: Yes
  • Moisture resistant: Yes
  • Pulse-withstanding: Yes
  • Seated Height: 0.035 inches
  • Temperature Coefficient: ±75ppm/°C
  • Operating Temperature: -65°C to 170°C
  • Package: 2512
  • Terminations: 2
  • Supply and demand status: balanced
