Same model may have multiple batches, images only for reference.

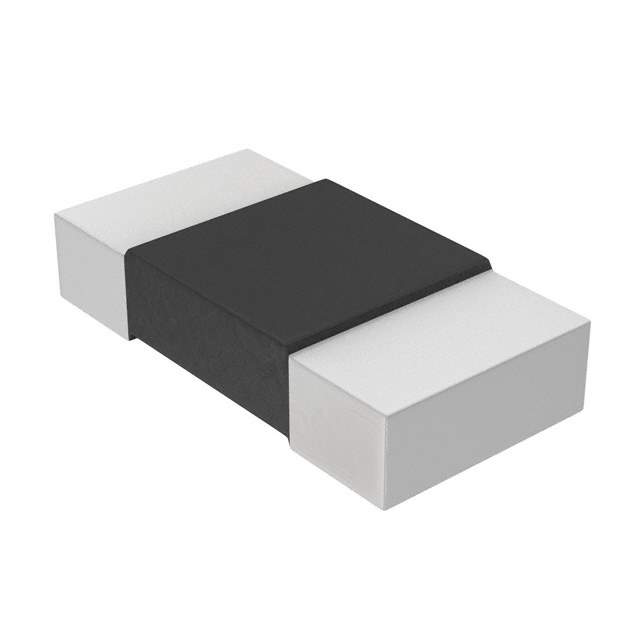

WSL0603R0250FEA18 Real Image
Same model may have multiple batches, images only for reference.

WSL0603R0250FEA18

Part No WSL0603R0250FEA18
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.025 OHM 1% 1/5W 0603 / 25 mOhms ±1% 0.2W, 1/5W Chip Resistor 0603 (1608 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet
WSL0603R0250FEA18 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series WSL-HP
Package Tape & Reel
Resistance 25 mOhms
Tolerance ±1%
Power (Watts) 0.2W, 1/5W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Ratings AEC-Q200
Dimension 0.060" L x 0.030" W (1.52mm x 0.76mm)
Height - Seated (Max) 0.021" (0.53mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names WSLL-.025TR,WSLL-.025CT,WSLL-.025DKR
Standard Package 5,000
Win Source Part Number 1033824-WSL0603R0250FEA18
Ultra Librarian 3D Model Ultra Librarian WSL0603R0250FEA18 CAD Model

Description

This electronic component is a chip resistor with a Win Source Part Number of 1033824-WSL0603R0250FEA18 manufactured by Vishay Dale.

  • Series: WSL-HP
  • Category: Resistors>Chip Resistor - Surface Mount
  • Resistance: 25 mOhms
  • Power Rating: 0.2W, 1/5W
  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • Packaging: Tape & reel
  • Height - Seated (Max): 0.021" (0.53mm)
  • Compatibility: Expected to be compatible with most devices in its category
