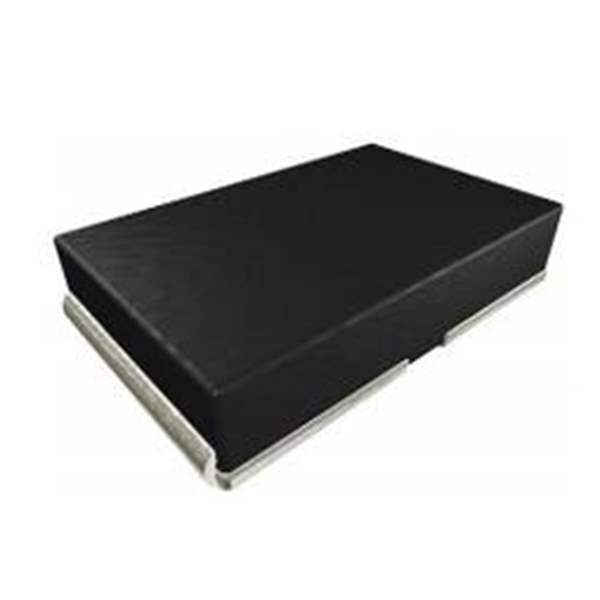

WSHP2818R0100FEA Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

WSHP2818R0100FEA

Part No WSHP2818R0100FEA
Manufacturer Vishay
Catalog Resistors
Description Current Sense Resistors - SMD 10W .01ohms 1%
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay
Series WSHP2818
Resistance 10 mOhms
Power Rating 10 W
Tolerance 1 %
Temperature Coefficient 75 PPM / C
Case Code - in 2818
Case Code - mm 7146
Minimum Operating Temperature - 65 C
Maximum Operating Temperature + 170 C
Technology Metal Element
Termination 2 Terminal
Termination Style SMD/SMT
Qualification AEC-Q200
Packaging Cut Tape
Packaging MouseReel
Packaging Reel
Application Current Sense
Height 1.5 mm (0.059 in)
Length 7.1 mm (0.28 in)
Type Power Metal Strip Resistors
Width 4.6 mm (0.181 in)
Brand Vishay / Dale
Mounting Style PCB Mount
Product Type Current Sense Resistors
Standard Pack Qty 3500
Subcategory Resistors
Ultra Librarian 3D Model Ultra Librarian WSHP2818R0100FEA CAD Model
