Same model may have multiple batches, images only for reference.

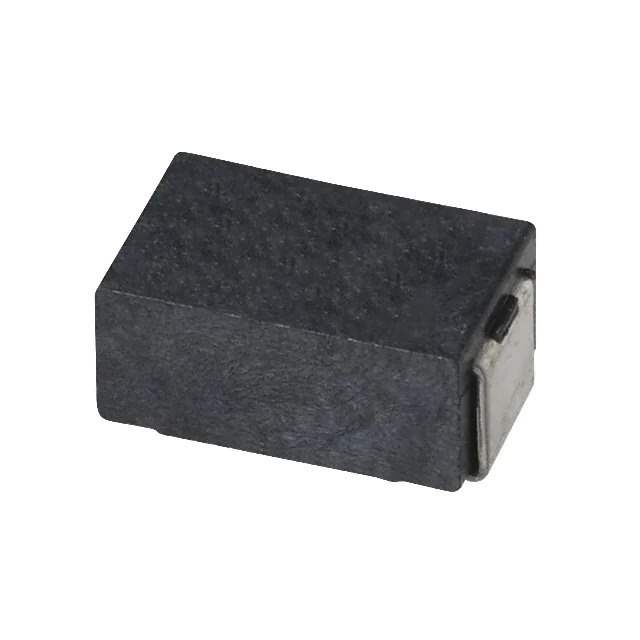

WSC25154R700FEA Real Image
Same model may have multiple batches, images only for reference.

WSC25154R700FEA

Part No WSC25154R700FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 4.7 OHM 1% 1W 2515
Datasheet
WSC25154R700FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay
Series WSC
Package Tape & Reel
Product Status Active
Resistance 4.7 Ohms
Tolerance ±1%
Power (Watts) 1W
Composition Wirewound
Features Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -65°C ~ 275°C
Package / Case 2515 J-Lead
Supplier Device Package 2515
Ratings AEC-Q200
Size / Dimension 0.250" L x 0.150" W (6.35mm x 3.81mm)
Height - Seated (Max) 0.125" (3.17mm)
Number of Terminations 2
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 842520-WSC25154R700FEA
Ultra Librarian 3D Model Ultra Librarian WSC25154R700FEA CAD Model

Description

The WSC25154R700FEA is a chip resistor from Vishay's WSC series.

  • Type: Surface Mount Resistor
  • Size: 0.250" L x 0.150" W (6.35mm x 3.81mm)
  • Height: 0.125" (3.17mm)
  • Resistance Value: 4.7 Ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Application: Automotive
  • Compliance: AEC-Q200
  • Pulse Current Withstanding: High
  • Power Rating: 1W
  • Material: Wirewound
  • Terminations: 2
  • Packaging: Tape and Reel
  • Pieces per Reel: 2000
  • Operating Temperature: -65°C to 275°C
  • Product Status: Active
