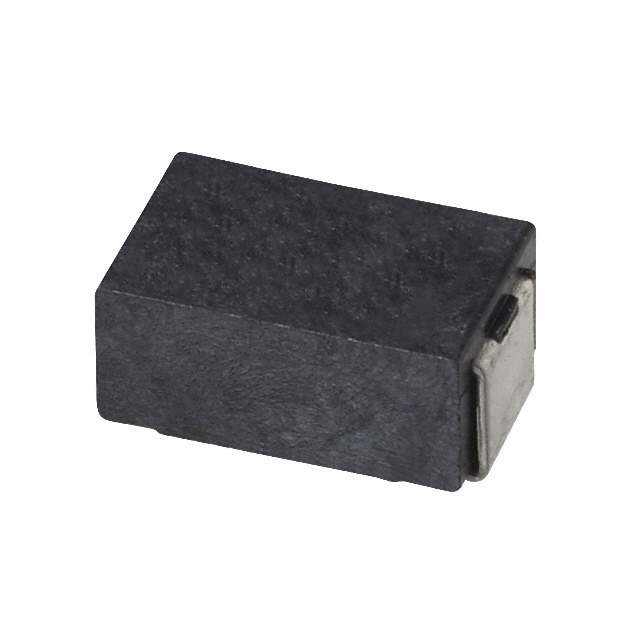

WSC2515499R0FEA Real Image
Same model may have multiple batches, images only for reference.

WSC2515499R0FEA

Part No WSC2515499R0FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 499 OHM 1% 1W 2515 / 499 Ohms ±1% 1W Chip Resistor 2515 J-Lead Automotive AEC-Q200, Pulse Withstanding Wirewound
Datasheet
WSC2515499R0FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series WSC
Package Tape & Reel
Resistance 499 Ohms
Tolerance ±1%
Power (Watts) 1W
Composition Wirewound
Features Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -65°C ~ 275°C
Package / Case 2515 J-Lead
Supplier Device Package 2515
Ratings AEC-Q200
Dimension 0.250" L x 0.150" W (6.35mm x 3.81mm)
Height - Seated (Max) 0.125" (3.17mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names 541-WSC2515499R0FEADKR,541-WSC2515499R0FEACT,541-WSC2515499R0FEATR
Standard Package 2,000
Win Source Part Number 984903-WSC2515499R0FEA
Ultra Librarian 3D Model Ultra Librarian WSC2515499R0FEA CAD Model

Description

The WSC2515499R0FEA is a chip resistor designed for use in automotive applications that require pulse withstanding. It has a resistance of 499 Ohms with a tolerance of ±1%. The resistor is composed of wirewound material and has a power rating of 1W. It features a temperature coefficient of ±20ppm/°C and is rated AEC-Q200. The WSC2515499R0FEA is manufactured by Vishay Dale and is part of the Resistors>Chip Resistor - Surface Mount category. The device is packaged in tape and reel and has a J-Lead package/case size of 2515. It has an operating temperature range of -65°C to 275°C and is ECCN EAR99.
