Same model may have multiple batches, images only for reference.

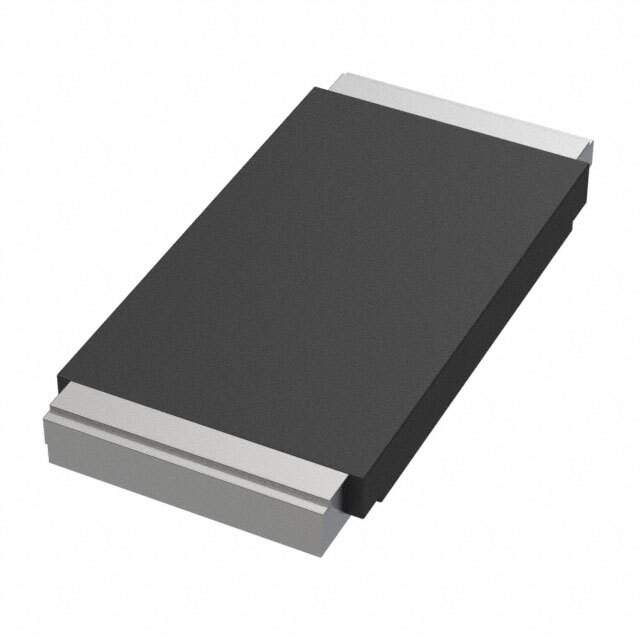

WFMB2512R4700FEA Real Image
Same model may have multiple batches, images only for reference.

WFMB2512R4700FEA

Part No WFMB2512R4700FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.47 OHM 3.0 W 1% 2512 SMD / 470 mOhms ±1% 3W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant Metal Film
Datasheet
WFMB2512R4700FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale
Series WFM
Package Tape & Reel
Resistance 470 mOhms
Tolerance ±1%
Power (Watts) 3W
Composition Metal Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.250" L x 0.125" W (6.35mm x 3.18mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1339295-WFMB2512R4700FEA
Ultra Librarian 3D Model Ultra Librarian WFMB2512R4700FEA CAD Model

Description

The WFMB2512R4700FEA is a chip resistor that is a part of the Resistors - Chip Resistor - Surface Mount category from Vishay Dale.

  • Series: WFM
  • Features: Automotive AEC-Q200, Current Sense, Moisture Resistant
  • Package: Tape & Reel
  • Standard Package: 2,000
  • Size/Dimension: 0.250" L x 0.125" W (6.35mm x 3.18mm)
  • Height Seated (Max): 0.026" (0.65mm)
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
