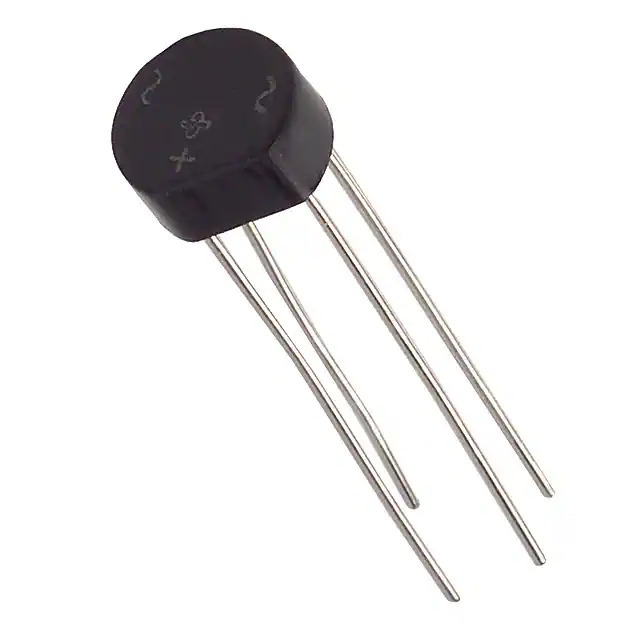

W01G-E4/51 Vishay
Same model may have multiple batches, images only for reference.

W01G-E4/51

Part No W01G-E4/51
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 100V 1.5A WOG
Datasheet
W01G-E4/51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Vishay General Semiconductor - Diodes Division
Series -
Package Bulk
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 100 V
Current - Average Rectified (Io) 1.5 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 1 A
Current - Reverse Leakage @ Vr 5 µA @ 100 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-Circular, WOG
Supplier Device Package WOG
Base Product Number W01
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368074-W01G-E4/51
Ultra Librarian 3D Model Ultra Librarian W01G-E4/51 CAD Model

Description

The W01G-E4/51 is an active bridge rectifier diode manufactured by Vishay General Semiconductor - Diodes Division.

  • Diode Phase: Single-Phase
  • Maximum Peak Reverse Voltage: 100V
  • Average Rectified Current: 1.5A
  • Maximum Forward Voltage: 1V @ 1A
  • Operating Temperature Range: -55°C to 150°C
  • Package: 4-circular, WOG
  • Mounting Type: Through-Hole
  • Product Status: Active
  • ECCN: EAR99
