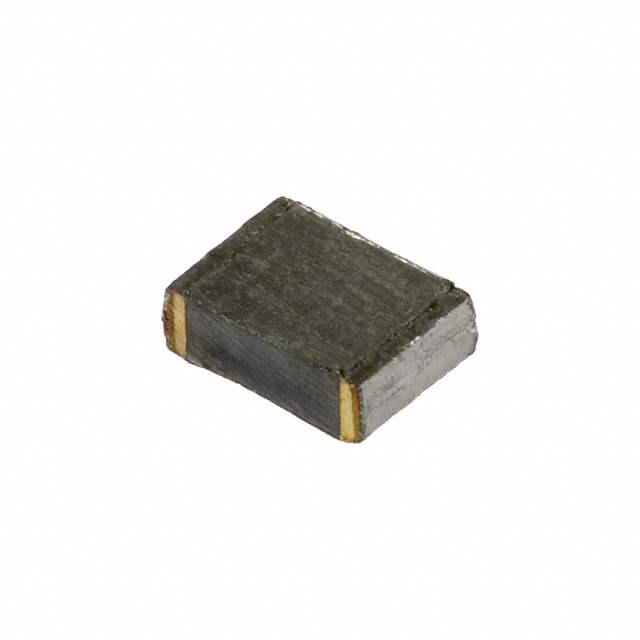

ECH-U1H273JB5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.027μF
Tolerance ±5%
Voltage Rating - DC 50V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.063" (1.60mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 000911-ECH-U1H273JB5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECH-U1H273JB5 CAD Model

Description

Description

The ECH-U1H273JB5 component is crafted for precision electronics, ensuring accurate performance even in demanding environments. Its high-quality design provides stability and reliability.

Features and Benefits

  • Precision in design for critical applications
  • Enhanced thermal stability
  • Smooth electrical characteristics

Applications

  • Precision instrumentation
  • Advanced automotive systems
  • Telemetric devices
  • Research equipment

Additional Details

This component excels in situations where precision and reliability are crucial, offering consistent performance and reducing maintenance needs over time.
