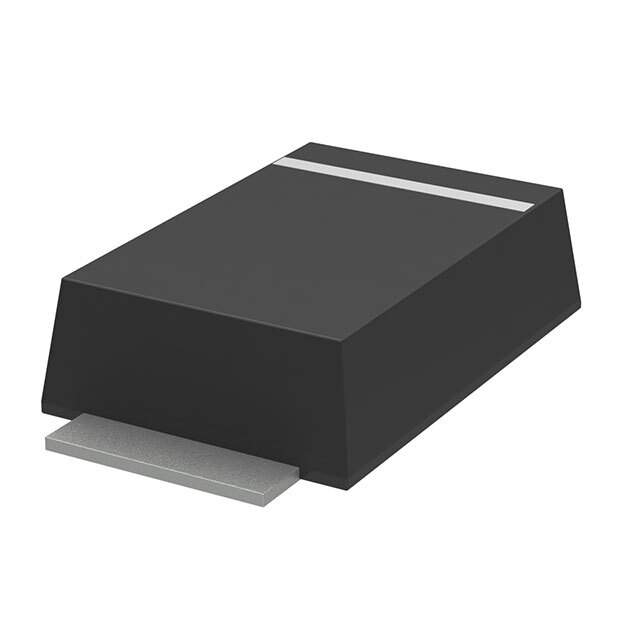

VSSAF56HM3_A/H Real Image
Same model may have multiple batches, images only for reference.

VSSAF56HM3_A/H

Part No VSSAF56HM3_A/H
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 5A DO221AC
Datasheet
VSSAF56HM3_A/H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 51 Weeks
Features Diode Schottky 60 V 5A (DC) Surface Mount DO-221AC (SlimSMA)
Manufacturer Vishay
Series Automotive, AEC-Q101, TMBS®, SlimSMA™
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package DO-221AC, SMA Flat Leads
Case / Package DO-221AC (SlimSMA)
Family Name SAF56
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number VSSAF56HM3_A/HGICT, VSSAF56HM3_A/H-ND, VSSAF56HM3_A/HGITR, VSSAF56HM3_A/HGIDKR
Quantity per package 3500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 903043-VSSAF56HM3_A/H
Ultra Librarian 3D Model Ultra Librarian VSSAF56HM3_A/H CAD Model

Description

The VSSAF56HM3_A/H is a Schottky diode from Vishay. It is designed to be used in discrete semiconductor products category applications. The device has a slimSMA™ package and is surface mountable. It has a diode Schottky 60V 5A (DC) and can operate within a temperature range of -65°C to 150°C (TJ). The VSSAF56HM3_A/H has a fast recovery time of <500ns and can handle a current of >200mA (Io). The device is available in a DO-221AC, SMA flat leads package and has a popularity of high. It is ECCN EAR99 compliant and has a supply and demand status of balance. The VSSAF56HM3_A/H is available in a reel - TR package and has a quantity of 3500.
