VSS8D5M12-M3/H Vishay
Same model may have multiple batches, images only for reference.

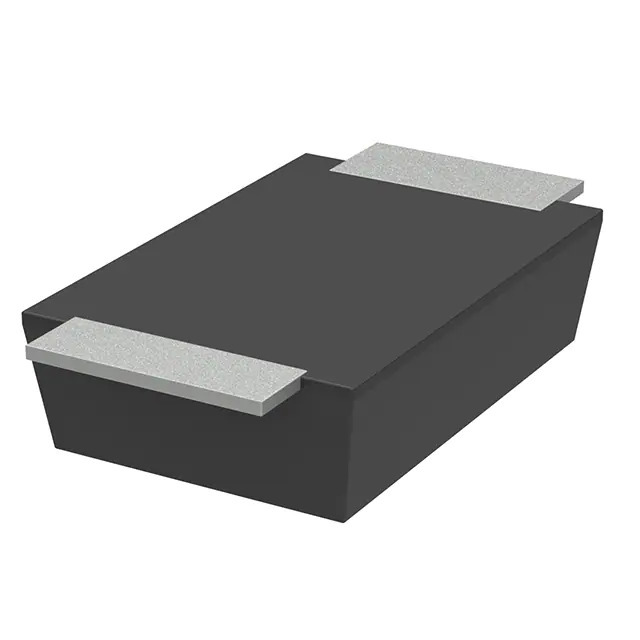

VSS8D5M12-M3/H

Part No VSS8D5M12-M3/H
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTT 100V 2.2A SLIMSMAW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series eSMP®, TMBS®
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 2.2A
Voltage - Forward (Vf) (Max) @ If 620 mV @ 2.5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 350 µA @ 120 V
Capacitance @ Vr, F 460pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package SlimSMAW (DO-221AD)
Operating Temperature - Junction -40°C ~ 175°C
Base Product Number S8D5
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367185-VSS8D5M12-M3/H
Ultra Librarian 3D Model Ultra Librarian VSS8D5M12-M3/H CAD Model

Description

The 1367185-VSS8D5M12-M3/H is a single rectifier diode from Vishay General Semiconductor - Diodes Division.

  • Series: eSMP®, TMBS®
  • Maximum Reverse Voltage (Vr): 100 V
  • Average Rectified Current (Io): 2.2A
  • Forward Voltage (Vf): 620 mV @ 2.5 A
  • Recovery Time: Less than 500ns
  • Operating Temperature: -40°C to 175°C
  • Packaging: Tape & Reel
  • Package / Case: SlimSMAW (DO-221AD)
  • REACH: Unaffected
  • ECCN: EAR99
