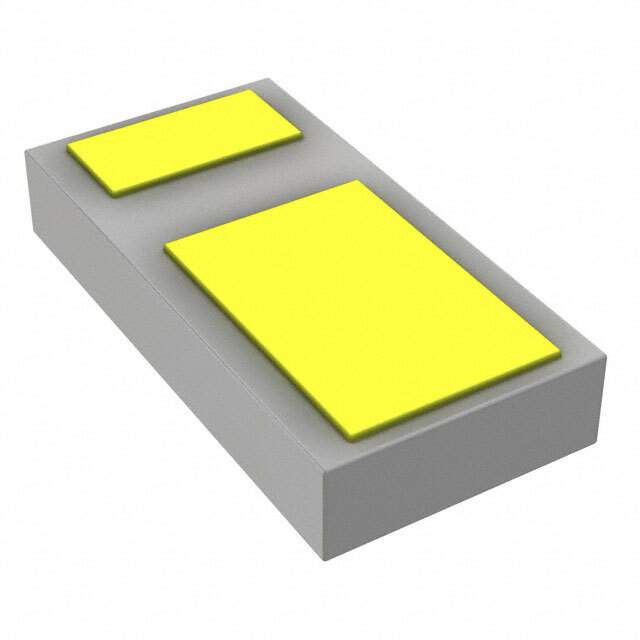

Same model may have multiple batches, images only for reference.

VSKY20401608-G4-08

Name: VSKY20401608-G4-08
Brand: Vishay
SKU: 804165
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	VSKY20401608-G4-08
Manufacturer	Vishay
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 40V 2A CLP1608-2L
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Vishay Semiconductor Diodes Division
Packaging	Reel
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Maximum)	40V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Maximum) at If	580mV at 2A
Speed	Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr	150μA at 40V
Capacitance at Vr, F	340pF at 0V, 1MHz
Mounting Style	SMD
Manufacturer Package	0603
Supplier Device Package	CLP1608-2L
Operating Temperature - Junction	125°C (Maximum)
Manufacturer Pack Quantity	5,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	804165-VSKY20401608-G4-08
Ultra Librarian 3D Model	Ultra Librarian VSKY20401608-G4-08 CAD Model

Alternative Products

Description

The Vishay Semiconductor Diodes Division VSKY20401608-G4-08 is a high-quality Schottky diode that is designed for a wide range of electronic applications.

Current Average Rectified (Io): 2A
Voltage - DC Reverse (Vr) (Maximum): 40V
Voltage - Forward (Vf) (Maximum) @ If: 580mV @ 2A
Current - Reverse Leakage @ Vr: 150μA @ 40V
Capacitance @ Vr, F: 340pF @ 0V, 1MHz
Speed: Fast Recovery = 200mA (Io)
Dimension: 0603
Package: CLP1608-2L
Operating Temperature: Up to 125°C
Supply and Demand Status: Balanced
